INCH-POUND W-F-1814/8D
15 November 2013
SUPERSEDING W-F-1814/8C
27 July 2009
FEDERAL SPECIFICATION SHEET
FUSE, CARTRIDGE, HIGH INTERRUPTING CAPACITY, CLASS J (CURRENT-LIMITING) 600 VOLTS, 101-200 AMPERES
The General Services Administration has authorized the use of this federal specification, by all federal agencies.
The complete requirements for procuring the fuses described herein shall consist of this document and the latest issue in effect of W-F-1814.
Ltr |
Inches |
mm |
Ltr |
Inches |
mm |
||||
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
||
A |
5.660 |
5.840 |
143.76 |
148.34 |
G |
.500 |
--- |
12.70 |
--- |
B |
4.320 |
4.440 |
109.73 |
112.78 |
H |
1.090 |
1.160 |
27.69 |
29.46 |
C |
2.970 |
3.030 |
75.44 |
76.96 |
J |
1.380 (REF) |
35.05 (REF) |
||
D |
.690 (REF) |
17.53 (REF) |
K |
.185 |
.191 |
4.70 |
4.85 |
||
E |
.276 |
.286 |
7.010 |
7.26 |
L |
--- |
1.620 |
--- |
41.15 |
F |
.380 |
.440 |
9.652 |
11.18 |
|||||
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.02 (0.51 mm) for two-place decimals and ±.005 (0.13 mm) for three-place decimals.

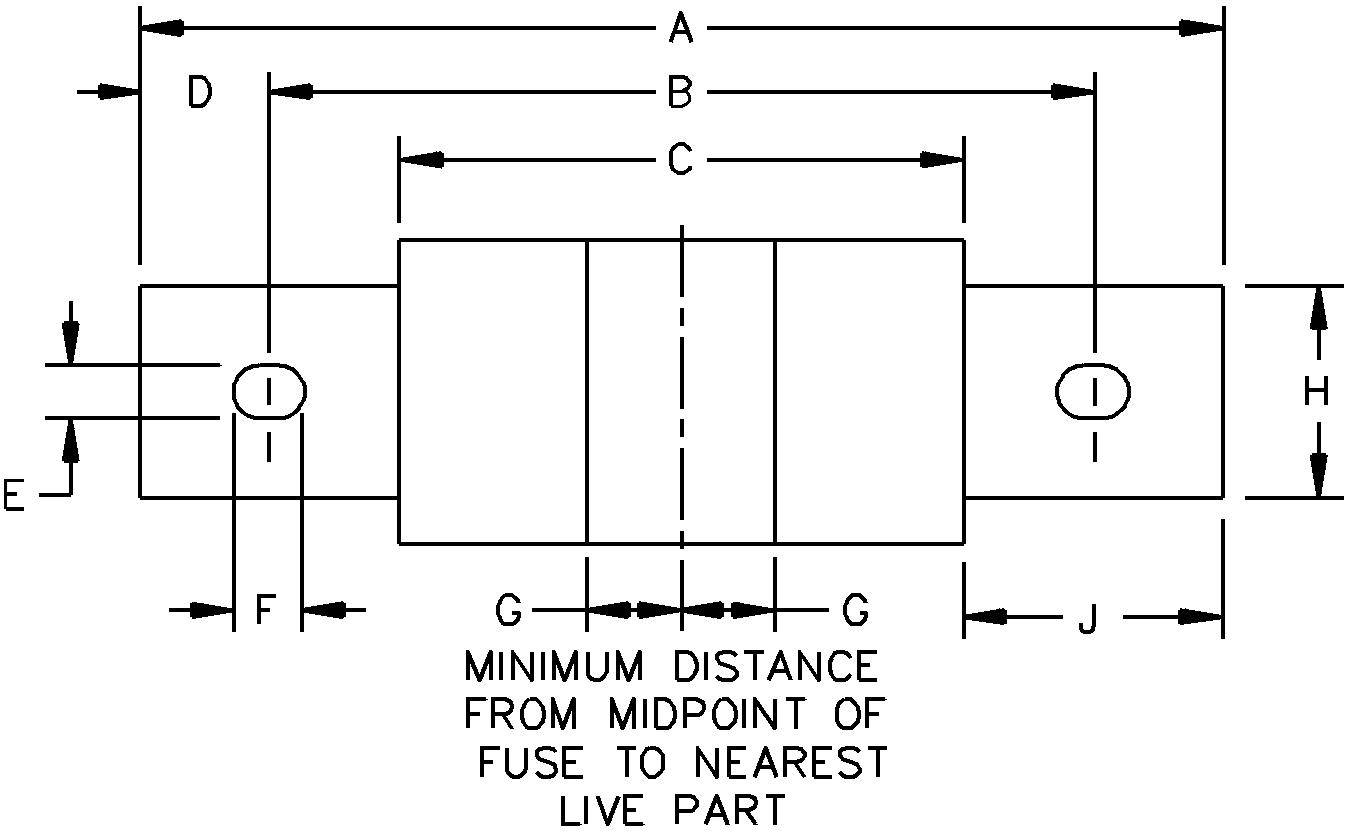

FIGURE 1. Configuration and dimensions.
AMSC N/A FSC 5920
