A-A-55168 Fuseholder, Block, Class H, 30 Ampere, 250 V Ac, One, Two, And Three PoleThis commercial item description \(CID\) covers the general requirements for one, two, and three pole, class H type fuseholder blocks. Fuseholders covered by this CID are intended for commercial/industrial applications.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8

A-A-55168D

Inches

.171

4.36

1.25

31.75

.218

5.53

.265

32.14

.250

6.35

.406

35.71

.406

10.31

.515

38.49

.50

12.7

.906

48.41

.546

13.89

.046

51.99

.750

19.05

2.50

63.5

.953

24.20

3.00

76.2

1.093

27.78

.031

76.98

NOTES:

1. Dimensions are in inches.

2. Tolerance is �.005 inch (0.13 mm), unless otherwise specified.

FIGURE 1. Configuration and dimensions - Continued.

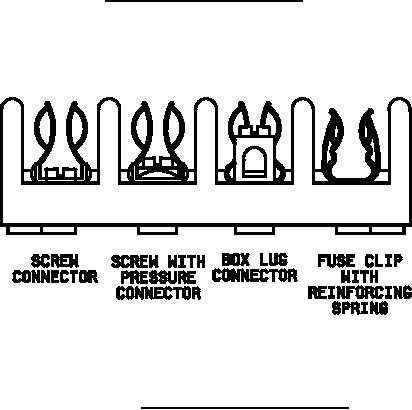

FIGURE 2. Wire termination configurations.
