A-A-55428 Fuseholder, Block, Class H, 30 Ampere, 600 V Ac, One, Two, And Three PoleThis commercial item description \(CID\) covers the general requirements for one, two, and three pole, 30 ampere, 600 V AC, type H fuseholder blocks. Fuseholders covered by this CID are intended for commercial/industrial applications.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9

A-A-55428D

Inches

.061

1.56

.796

20.24

.064

1.64

1.250

31.75

.065

1.65

1.310

33.33

.121

3.09

1.534

38.97

.218

5.55

1.750

44.45

.250

6.35

1.821

46.25

.261

6.63

2.625

66.67

.263

6.82

2.843

72.23

.406

10.31

4.750

102.65

.50

12.7

4.159

105.64

.546

13.89

4.487

113.96

NOTES:

1. Dimensions are in inches.

2. Tolerance is �.005 inch (0.13 mm), unless otherwise specified.

FIGURE 1. Configuration and dimensions - Continued.

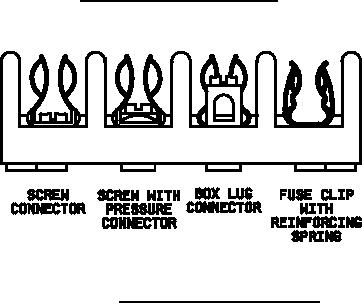

FIGURE 2. Wire termination configuration.
