A-A-55496 Fuse Cartridge, Semiconductor Type, 700 VoltsThis commercial item description \(CID\) covers the general requirements for 700 volt semiconductor type fuse cartridges. Fuse cartridges covered by this CID are intended for commercial/industrial applications.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8


A-A-55496D
AA55496-
Dimensions
A
B
C
001
2.000
.563
.505
through
(50.80)
(14.30)
(12.83)
006
Configuration A
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance is ±.005 inch (0.13 mm).

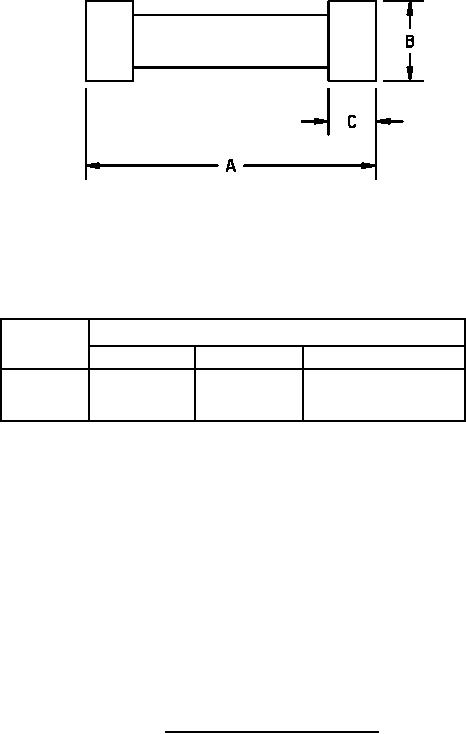

FIGURE 1. Configuration A and dimensions.
