A-A-55504-1 Fuseholder, Extractor Post, Front Mount, Low Profile, Finger Grip Knob Fuse Carrier For 3Ag \(.25 Inch \(In\) X 1.25 In \(6.35 Millimeters \(Mm\) X 31.75 Mm\)\) Or .196 In X .787 In \(5 Mm X 20 Mm\) Fuse Cartridges

Pages 1 - 2 - 3 - 4

A-A-55504/1C

Inches

mm

Inches

mm

.311

7.90

.496

12.60

.402

10.20

.509

12.70

.457

11.60

.618

15.70

.465

11.81

.693

17.60

.469

11.90

1.118

28.40

.480

12.19

1.504

38.20

NOTES:

1. Dimensions are in inches.

2. Unless otherwise specified, tolerance is .005 inch (0.13 mm).

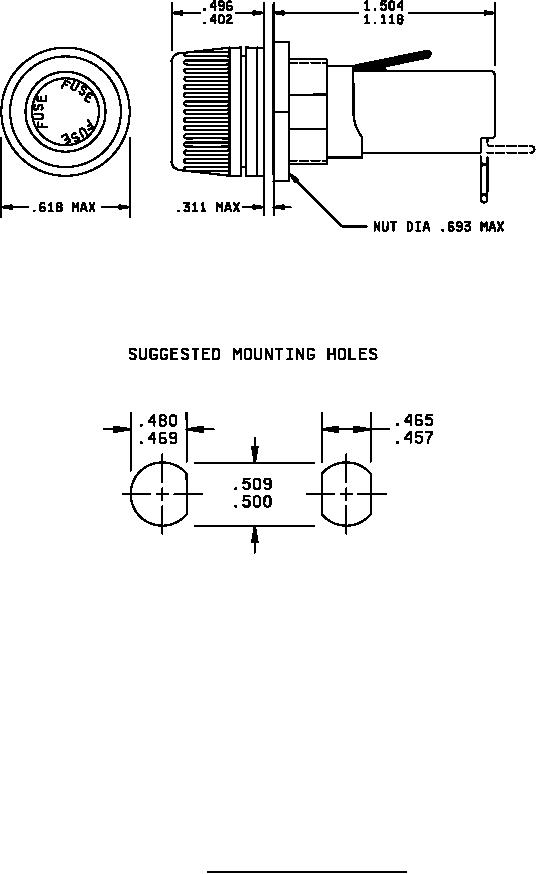

FIGURE 1. Configuration and dimensions.
