A-A-55504-2 Fuseholder, Extractor Post, Front Mount, High Profile, Finger Grip Knob Fuse Carrier For 3Ag \(.25 Inch \(In\) X 1.25 In \(6.35 Millimeters \(Mm\) X 31.75 Mm\)\) Or .196 In X .787 In \(5 Mm X 20 Mm\) Fuse Cartridges

Pages 1 - 2 - 3 - 4


A-A-55504/2C
Inches
mm
Inches
mm
.311
7.90
.510
12.95
.457
11.60
.618
15.70
.465
11.81
.689
17.50
.469
11.90
.693
17.60
.480
12.19
.906
23.00
.500
12.70
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance is .005 inch (0.13 mm).

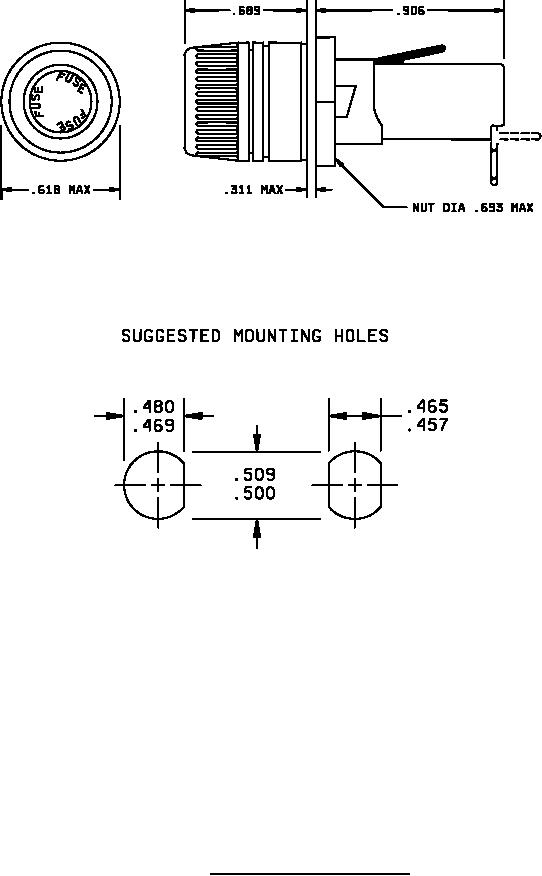

FIGURE 1. Configuration and dimensions.
