A-A-55504-3 Fuseholder, Extractor Post, Front Or Rear Mount, Finger Grip Knob Fuse Carrier For 3Ag \(.25 Inch \(In\) X 1.25 In \(6.35 Millimeters \(Mm\) X 31.75 Mm\)\) Or .196 In X .787 In \(5 Mm X 20 Mm\) Fuse Cartridges

Pages 1 - 2 - 3 - 4

A-A-55504/3C

Inches

mm

Inches

mm

.311

7.90

.509

12.95

.409

10.40

.618

15.70

.457

11.60

.681

17.30

.465

11.81

.693

17.60

.469

11.90

.913

23.20

.480

12.19

1.492

37.90

.500

12.70

NOTES:

1. Dimensions are in inches.

2. Unless otherwise specified, tolerance is .005 inch (0.13 mm).

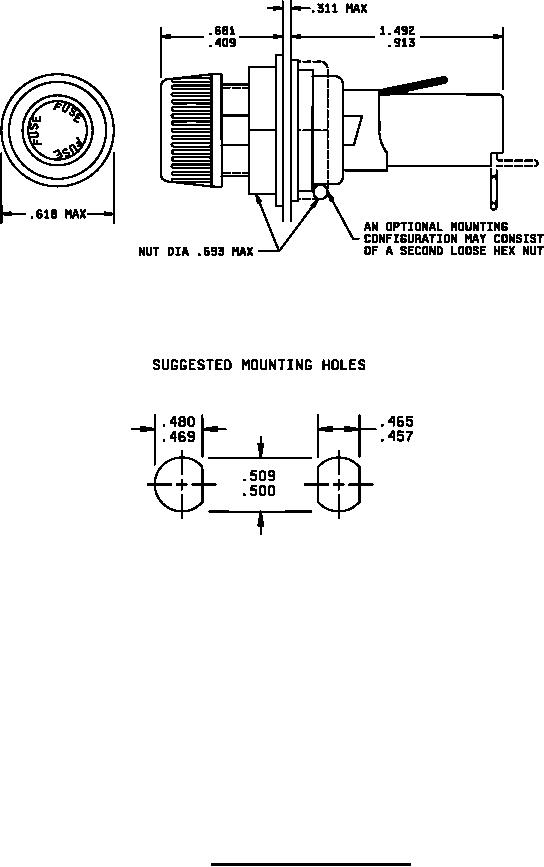

FIGURE 1. Configuration and dimensions.
