A-A-55504-4 Fuseholder, Extractor Post, Low Profile, Snap-In, Front Mount, Finger Grip Knob Fuse Carrier For 3Ag \(.25 Inch \(In\) X 1.25 In \(6.35 Millimeters \(Mm\) X 31.75 Mm\)\) Or .196 In X .787 In \(5 Mm X 20 Mm\) Fuse Cartridges

Pages 1 - 2 - 3 - 4

A-A-55504/4C

Inches

mm

Inches

mm

.311

7.90

.559

14.20

.469

11.90

.567

14.40

.496

12.60

.618

15.70

.504

12.80

1.126

28.60

NOTES:

1. Dimensions are in inches.

2. Unless otherwise specified, tolerance is .005 inch (0.13 mm).

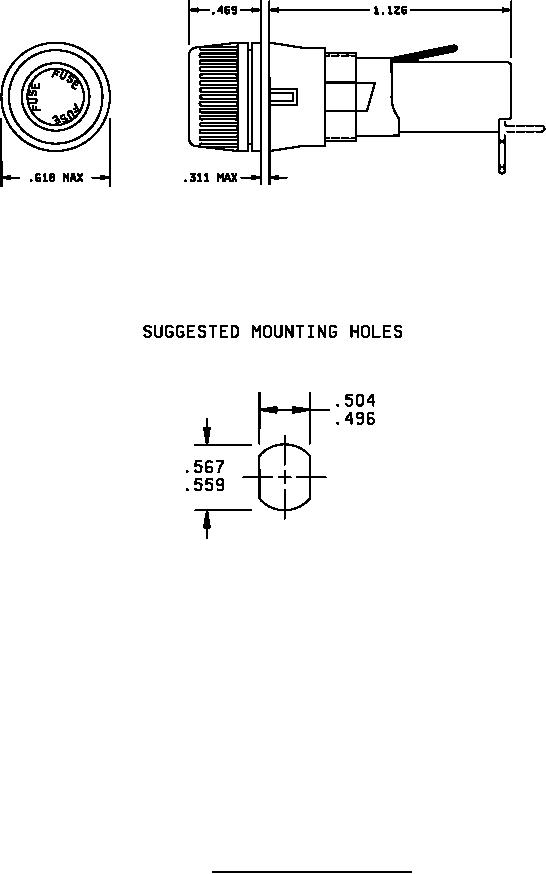

FIGURE 1. Configuration and dimensions.
