A-A-55504-6 Fuseholder, Extractor Post, High Profile, Front Mount, Screwdriver Slotted Knob Fuse Carrier For 3Ag \(.25 Inch \(In\) X 1.25 In \(6.35 Millimeters \(Mm\) X 31.75 Mm\)\) Or .196 In X .787 In \(5 Mm X 20 Mm\) Fuse Cartridges

Pages 1 - 2 - 3 - 4

A-A-55504/6C

Inches

mm

Inches

mm

.030

0.76

.469

11.90

.040

1.01

.480

12.19

.250

6.35

.500

12.70

.255

6.48

.509

12.95

.311

7.90

.628

15.95

.390

9.91

.693

17.60

.414

10.51

1.236

31.40

.457

11.60

1.352

34.33

.465

11.81

NOTES:

1. Dimensions are in inches.

2. Unless otherwise specified, tolerance is .005 inch (0.13 mm).

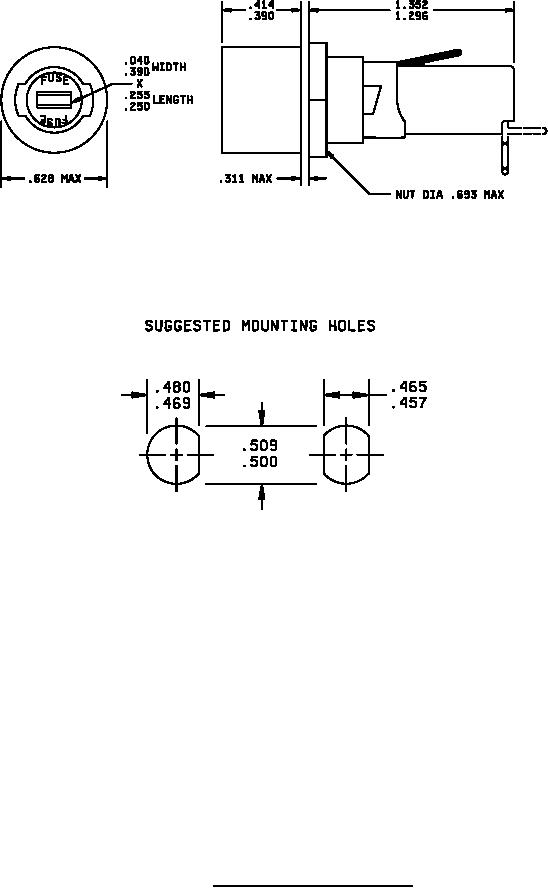

FIGURE 1. Configuration and dimensions.
