A-A-55508 Fuseholder, Block, 30 Ampere \(A\), 250 Volts \(V\) Ac, 1 To 12 PolesThis commercial item description CID covers the general requirements for fuseholder blocks which accommodate .406 inch \(10.3 mm\) X 1.5 inches \(38.1 mm\) fuse cartridges. Fuseholder blocks covered by this CID are intended for commercial/industrial applications.

Pages 1 - 2 - 3 - 4 - 5 - 6


A-A-55508E
Inches
mm
Inches
mm
.000
.013
0.291
7.40
0.142
3.61
0.349
8.86
0.145
3.68
0.422
10.71
0.176
4.47
0.969
24.61
0.25
6.35
1.031
26.20
0.280
7.11
1.375
34.92
NOTES:
1. Dimensions are in inches.
2. Tolerance is ±.005 inch (0.13 mm), unless otherwise specified.

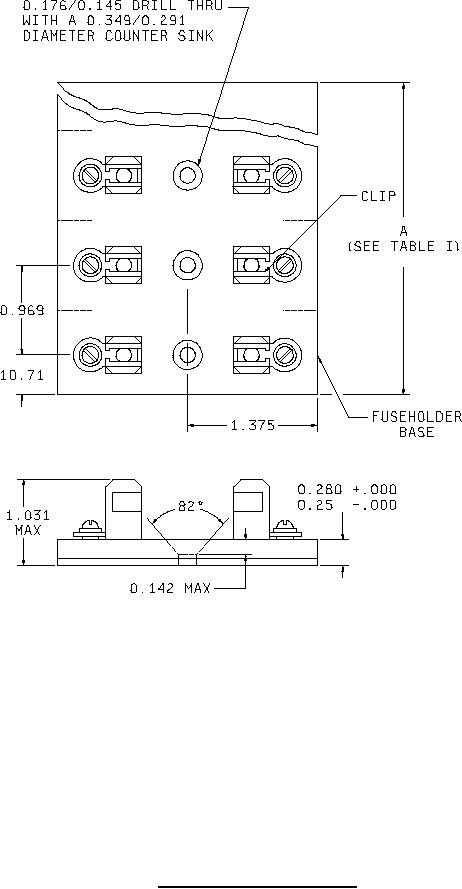

FIGURE 1. Configuration and dimensions.
