A-A-55518/2D
Inches
mm
.030
0.80
.250
6.40
.642
16.30
.700
17.80
.810
20.57
1.280
32.51
1.620
41.15
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance is ±.005 inch (0.13 mm).
3. The following notes apply to width A of the fuseholder blocks (see table I).
a. The longitudinal centerline of single and outer pairs of fuse clips of multiple pole fuseholder
blocks shall be located .39 inch (9.9 mm) from the edge of the block.
b. The distance between longitudinal centerlines of adjacent pairs of fuse clips shall be .91 inch
(23.1 mm).
c. A minimum of two mounting holes shall be provided on multiple pole fuseholder blocks. These
holes shall be one each centrally located between the fuse clips on the longitudinal centerline of
the outer pairs of fuse clips.

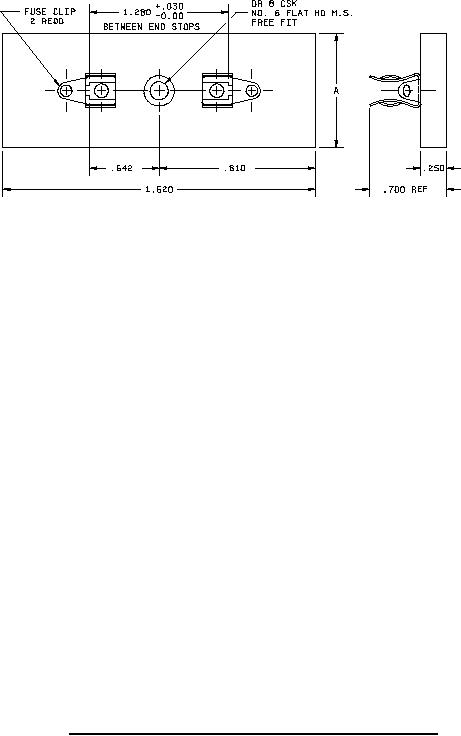

FIGURE 2. Configuration and dimensions (solder lug terminal type).
3
