A-A-55561/1B
DIP CONFIGURATION
(THRU-HOLE) MOUNTING
CONFIGURATION D
Inches
mm
.012
0.30
.021
0.53
.135
3.43
.165
4.19
.250
6.35
.372
9.45
.400
10.16
NOTES:
1. Dimensions are in inches.
2. Tolerance is ±.005 inch(0.13 mm), unless otherwise specified.

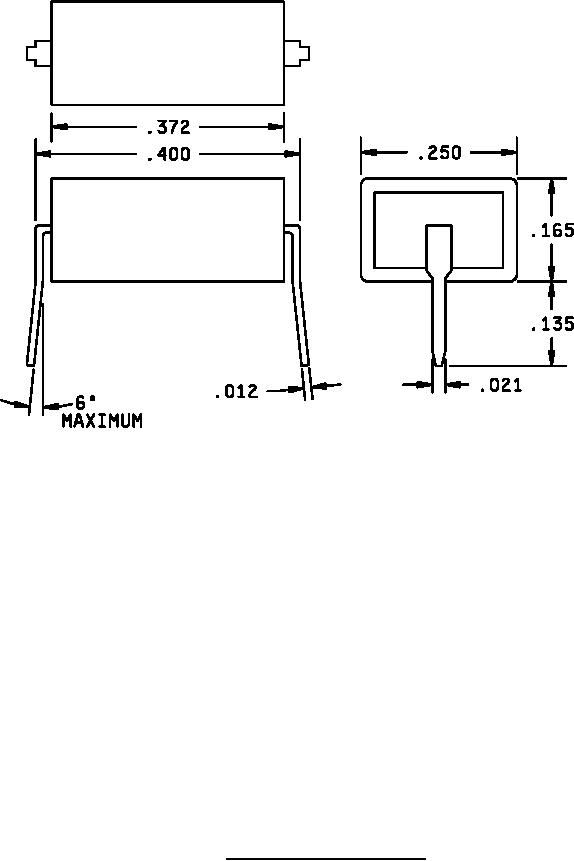

FIGURE 1. Configuration and dimensions.
