MIL-DTL-24646-14 Fuse Boxes, Feeder Junction, Totally Enclosed, 250 Volts, Alternating Current, Three Phase Buses, Single And Three Phase Branches, 0-30 And 31-60 Ampere Fuses, Symbols 680 And 681.1

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7


MIL-DTL-24646/14B
Note: MAIN TERMINALS
SYMBOL 680 200 MCM
SYMBOL 681.1 75 MCM

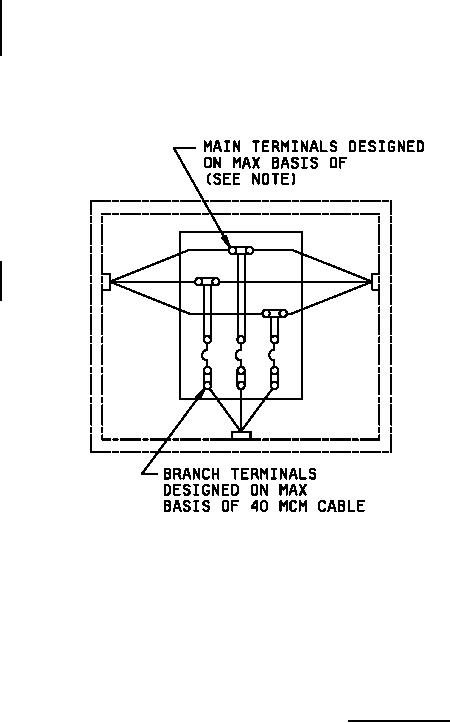

FIGURE 5. Wiring diagram. 07
(Symbols 680 and 681.1)
