MIL-DTL-9129/9A
Inches
mm
Ltr
Min
Max
Min
Max
A
.375
---
9.52
---
B
3.18
3.22
80.8
81.8
C
.48
.52
12.2
13.2
D
1.145
1.205
29.08
30.61
E
.280
.295
7.11
7.49
F
.060
---
1.52
---
G
3.78
3.82
96.0
97.0
H
1.87
---
47.5
---
J
.175
---
4.44
---
K
.31
---
7.9
---
L
---
.77
---
19.6
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are .02 (0.51 mm) for two places decimals and
.010 (0.25 mm) for three place decimals.

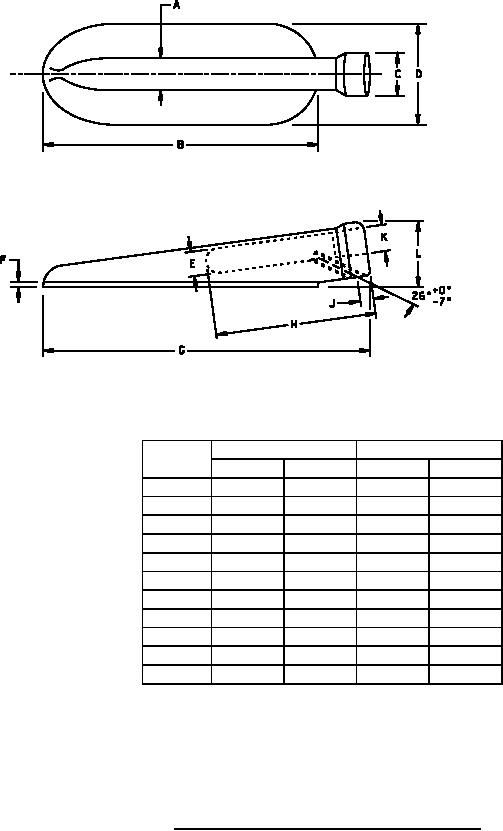

FIGURE 11. Dimensions and configuration for PIN M9129/09-11.
