MIL-PRF-19207/1K
Part or Identifying Number (PIN): FHL10U-001 - Body for FHL10U
FHL10G-002 - Body for FHL10G
Ltr
Inches
mm
Ltr
Inches
mm
Min
Max
Min
Max
Min
Max
Min
Max
A
.435
.445
11.05
11.30
L
1.802
1.822
45.77
46.28
B
.188
.198
4.78
5.03
M
.385
.425
9.78
10.80
C
1.175
1.190
29.85
30.23
N
.140
.160
3.57
4.06
D
.945
.955
24.00
24.26
P
.695
.705
17.65
17.91
E
.385
.395
9.78
10.03
R
.140
.190
3.56
4.83
F
.125
---
3.18
---
S
.565
.605
14.35
15.37
G
.933
.943
23.70
23.95
T
1.675
---
42.55
---
H
.850
.860
21.59
21.84
U
1.950
2.050
49.53
52.07
J
.360
.370
9.14
9.40
V
2.105
2.155
53.47
54.74
K
.435
.445
11.05
11.30
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ± 0.02 (0.51 mm) for two place decimals and ±0.005 (0.13mm) for
three-place decimals

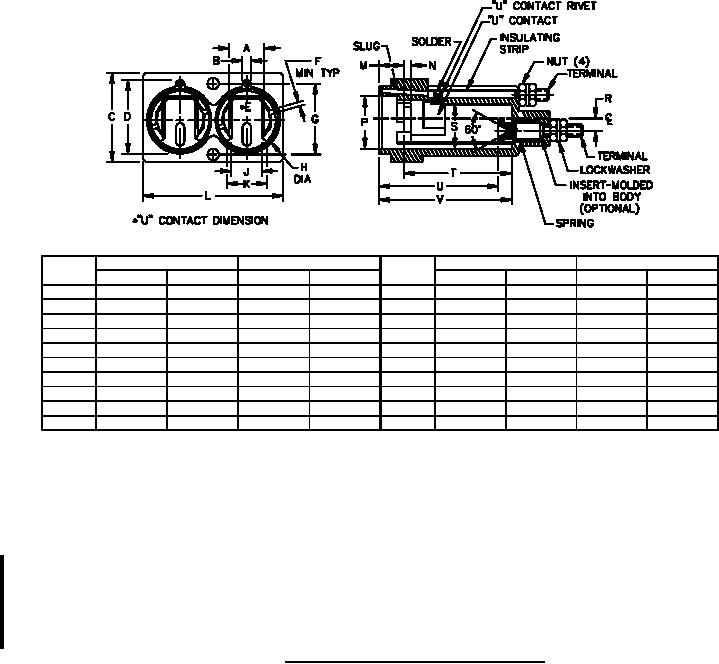

FIGURE 2. Body for FHL10U and FHL10G fuseholders.
