INCH-POUND
MIL-PRF-19207/11K
12 December 2013
SUPERSEDING
MIL-PRF-19207/11J
24 April 2007
PERFORMANCE SPECIFICATION SHEET
FUSEHOLDER, EXTRACTOR POST TYPE, BLOWN FUSE
NONINDICATING, TYPE FHN20G
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-19207.
Inches
mm
Ltr
Inches
mm
Min
Max
Min
Max
Min
Max
Min
Max
Ltr
A
.440
.452
11.18
11.48
G
.420
.460
10.67
11.68
B
1.01 (REF)
25.65 (REF)
H
.680
.690
17.27
17.53
C
---
.640
---
16.36
J
.670
.710
17.02
18.03
D
.120
.160
3.05
4.06
K
.475
.480
12.07
12.19
E
---
1.780
---
45.21
L
.500
.510
12.70
12.95
F
.980
1.02
24.89
25.91
NOTES:
1. Dimensions are in inches.
2. Metric equivalents (to the nearest .01 mm) are given for general information only.
3. Unless otherwise specified, tolerances are ±.02 (0.51 mm) for two-place decimals and ±0.005 (0.13 mm) for
three-place decimals.
4. The shape of the above fuseholder and knob marking are shown for information only. Slight deviations from
this outline drawing and/or the knob marking, which do not alter the functional aspect of the device, are
acceptable.

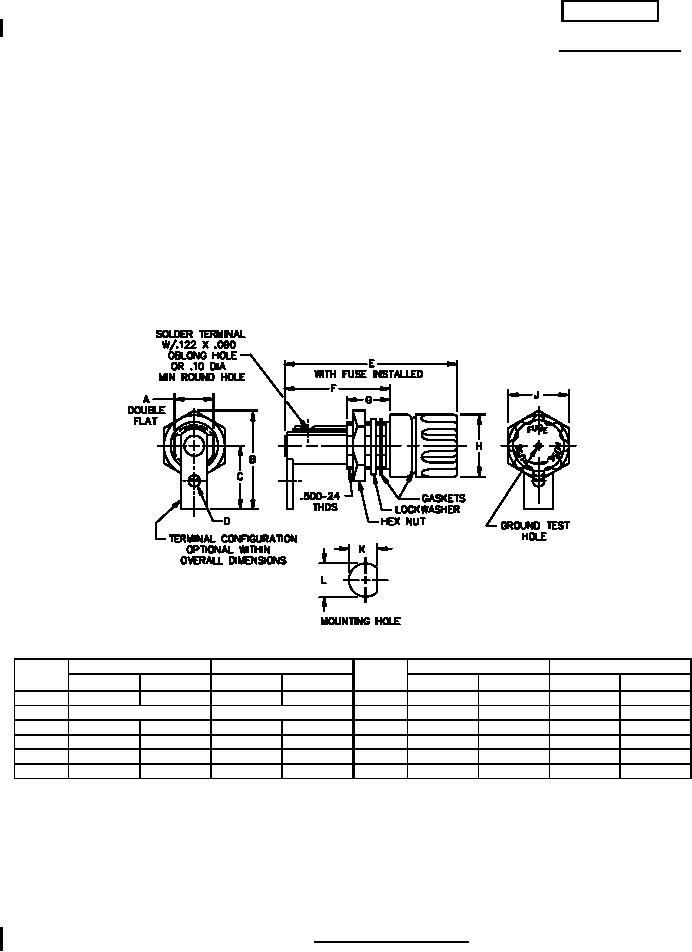

FIGURE 1. Type FHN20G fuseholder.
AMSC N/A
FSC 5920
