MIL-PRF-19207/22L
Ltr
Inches
mm
Ltr
Inches
mm
Min
Max
Min
Max
Min
Max
Min
Max
A
2.070
2.110
52.58
53.59
M
1.775
1.785
45.09
45.34
B
1.760
1.800
44.70
45.72
N
1.359
1.391
34.52
35.33
C
.860
.900
21.84
22.86
P
.677
.697
17.20
17.70
D
1.790
1.830
45.47
46.48
R
1.578
1.610
40.08
40.89
E
.620
.630
15.75
16.00
S
.786
.806
19.96
20.47
F
1.060 (REF)
26.92 (REF)
T
.432
.442
10.97
11.23
G
.940 (REF)
23.88 (REF)
U
.870
.880
22.10
22.35
H
---
.187
---
4.75
V
.147
.157
3.73
3.99
J
.04
.08
1.02
2.03
W
.885
.895
22.48
22.73
K
.730
.770
18.54
19.56
X
.120
.130
3.05
3.30
L
.920
.960
23.37
24.38
Y
1.870
1.880
47.50
47.75
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±0.02 (0.51 mm) for two-place decimals and ±0.005
(0.13 mm) for three-place decimals.
4. The location (on the fuseholder body or fuseholder cap) of the manufacturer's identification, type
designation and electrical rating is optional.

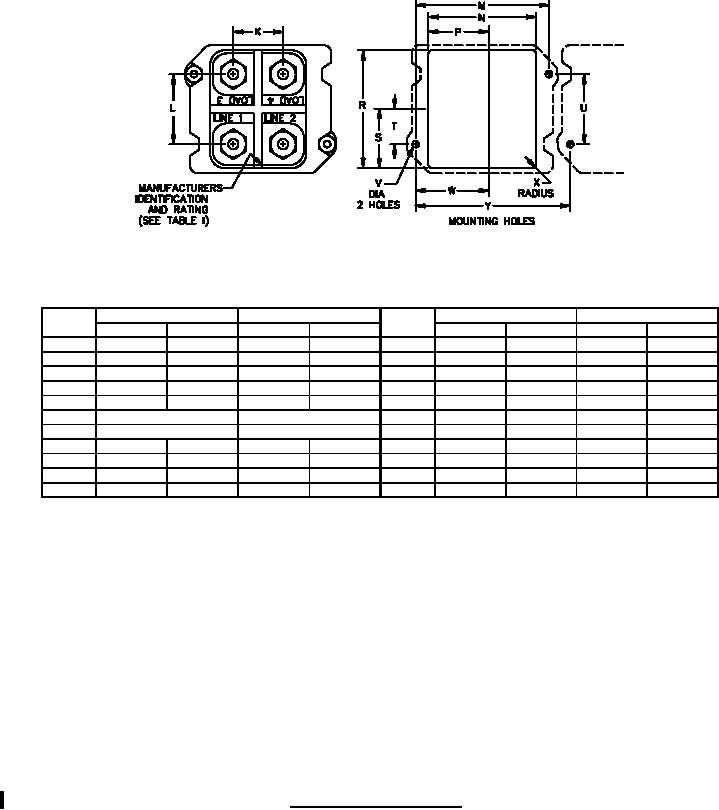

FIGURE 1. Type FHL33W fuseholder. - Continued.
