MIL-PRF-19207/3K
Ltr
Inches
mm
Ltr
Inches
mm
Min
Max
Min
Max
Min
Max
Min
Max
A
.960
.980
24.38
24.89
L
1.535
1.575
38.99
40.01
B
.920
.940
23.37
23.88
M
.390
.410
9.91
10.41
C
.805
.825
20.45
20.96
N
.145
.175
3.68
4.45
D
.038
.044
.96
1.12
P
.765
.785
19.43
19.94
E
.098 (REF)
2.49 (REF)
R
.230
.270
5.84
6.86
F
.125
.180
3.18
4.57
S
2.875
3.501
73.03
88.93
G
1.03
1.080
26.04
27.31
T
---
.120
---
3.048
H
---
1.980
---
50.29
U
.905
.925
22.99
23.50
J
---
.085
---
2.16
V
.560
.600
14.22
15.24
K
---
.375
---
9.53
W
.520
.560
13.21
14.22
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm) for three place decimals and ±.02
(0.5 mm) for two place decimals.

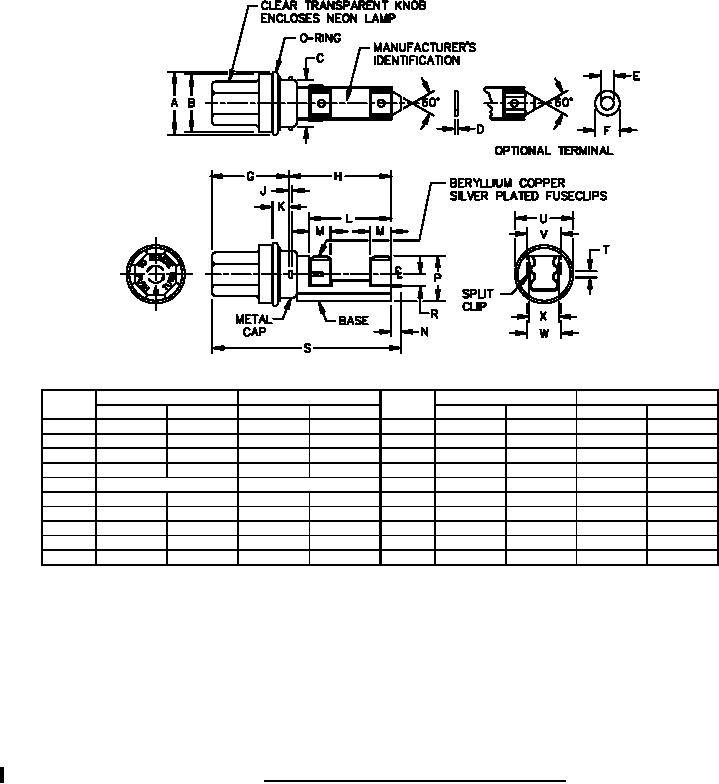

FIGURE 3. Fuse carrier for FHL12U and FHL12G fuseholders.
