A-A-55429 Fuseholder, Block, Class H, 100 Ampere, 600 V Ac, One, Two, And Three PoleThis commercial item description \(CID\) covers the general requirements for one, two, and three pole, 100 ampere, 600 V AC, type H fuseholder blocks. Fuseholders covered by this CID are intended for commercial/industrial applications.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8

A-A-55429D

Inches

.261

6.53

2.125

53.97

.281

7.14

2.375

60.32

.343

8.73

2.620

66.67

.50

12.7

4.031

102.39

.671

17.06

4.250

107.95

.875

22.22

5.843

148.43

1.109

28.17

9.50

241.3

1.812

46.03

NOTES:

1. Dimensions are in inches.

2. Tolerance is �.005 inch (0.13 mm), unless otherwise specified.

FIGURE 1. Configuration and dimensions - Continued.

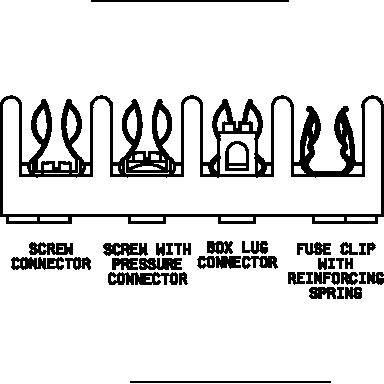

FIGURE 2. Wire termination configuration.
