A-A-55504-5 Fuseholder, Extractor Post, Front Mount, Low Profile, Screwdriver Knob Fuse Carrier For 3Ag \(.25 Inch \(In\) X 1.25 In \(6.35 Millimeters \(Mm\) X 31.75 Mm\)\) Or .196 In X .787 In \(5 Mm X 20 Mm\) Fuse Cartridges

Pages 1 - 2 - 3 - 4

A-A-55504/5C

Inches

mm

Inches

mm

.030

0.76

.468

11.90

.039

1.01

.489

12.19

.150

3.81

.500

12.70

.180

4.57

.509

12.95

.250

6.35

.627

15.95

.255

6.48

.692

17.60

.311

7.90

1.476

37.50

.457

11.60

1.539

40.23

.465

11.81

NOTES:

1. Dimensions are in inches.

2. Unless otherwise specified, tolerance is .005 inch (0.13 mm).

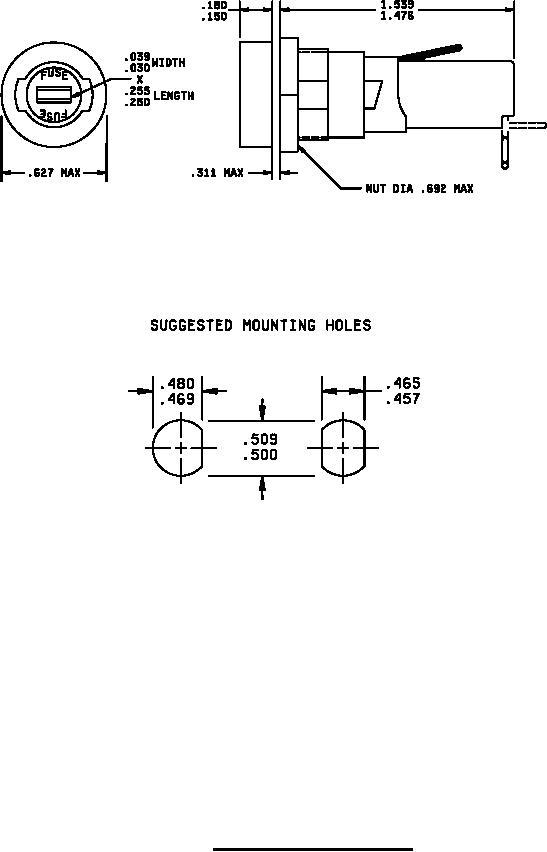

FIGURE 1. Configuration and dimensions.
