INCH-POUND
MIL-DTL-24646/1C
23 January 2014
SUPERSEDING
MIL-DTL-24646/1B
18 April 2008
DETAIL SPECIFICATION SHEET
FUSE BOXES, FEEDER DISTRIBUTION, TOTALLY ENCLOSED,
125 VOLTS, ALTERNATING CURRENT, SINGLE AND THREE PHASE BUSES,
SINGLE PHASE BRANCHES, 0-30 AMPERE MIDGET FUSES,
SYMBOLS 600, 601, 612, 612.1, 613, 613.1 AND 614
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-24646.

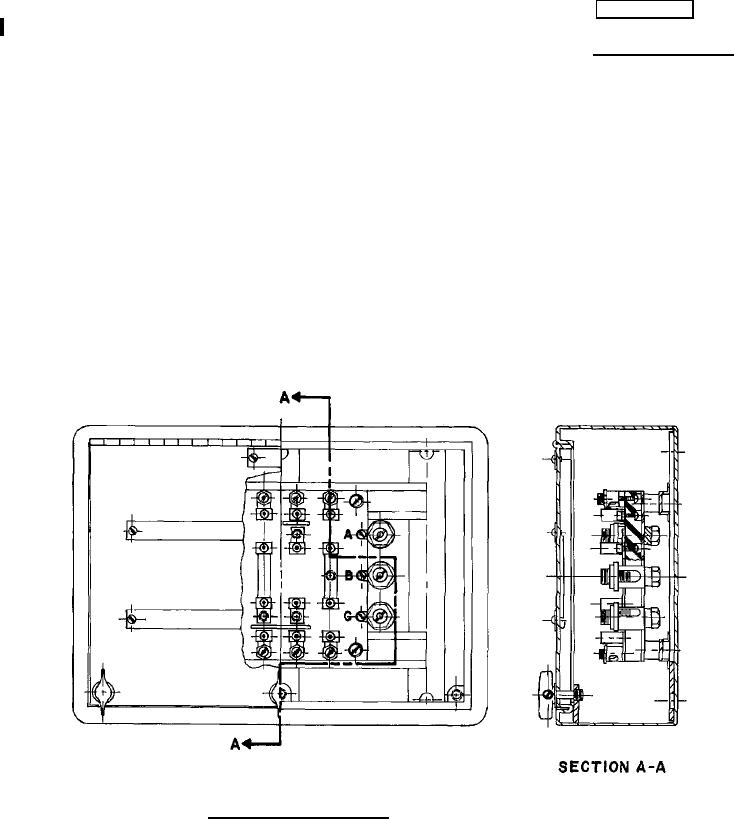

FIGURE 1. Fuse box assembly, typical. Item No. 01, 02, 03, 04, 05, 06, 07
(Symbol 612, 612.1 shown)
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified herein, tolerances shall be as follows:
Two place decimals - plus or minus 0.02.
Three place decimals - plus or minus 0.005.
AMSC N/A
FSC 5920
