MIL-DTL-24646-1 Fuse Boxes, Feeder Distribution, Totally Enclosed, 125 Volts, Alternating Current, Single And Three Phase Buses, Single Phase Branches, 0-30 Ampere Midget Fuses, Symbols 600, 601, 612, 612.1, 613, 613.1 And 614

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8


MIL-DTL-24646/1C
5

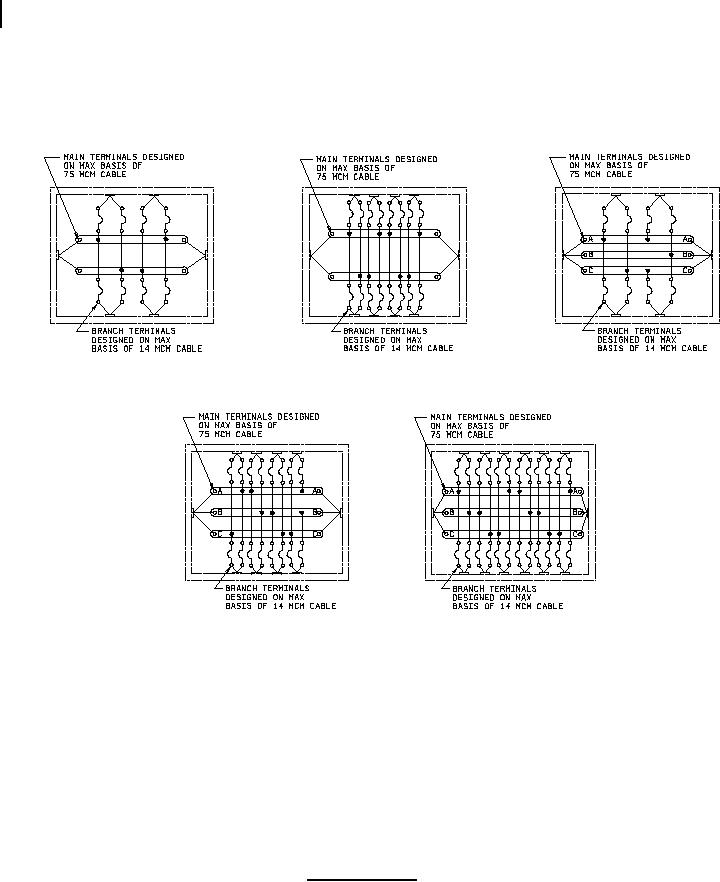

A. Four single-phase
B. Eight single-phase
C. Four single-phase
branches (Symbol 600)
branches (Symbol 601)
branches (Symbol 612,
and 612.1)
D. Eight single-phase branches
E. Twelve single-phase branches
(Symbol 613, and 613.1)
(Symbol 614)
FIGURE 5. Wiring diagrams. 20, 21, 22, 23, 24
