MIL-DTL-24646-10 Fuse Boxes, Feeder Distribution, Submersible, \(15 Feet\), 250 Volts, Alternating Current, Three Phase Buses, Single And Three Phase Branches, 0-30 Ampere Fuses, Symbols 560.1, 561.1, 562.1, And 563.1

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8


MIL-DTL-24646/10B
A. Two 3-phase branches
B. Four 3-phase branches
(Symbols 560.1 and 563.1)
(Symbol 561.1)
C. Six single-phase branches
D. Six 3-phase branches
(Symbol 561.1)
(Symbol 562.1)
NOTE: MAIN TERMINALS
SYMBOL 560.1 75 MCM
SYMBOL 563.1 200 MCM

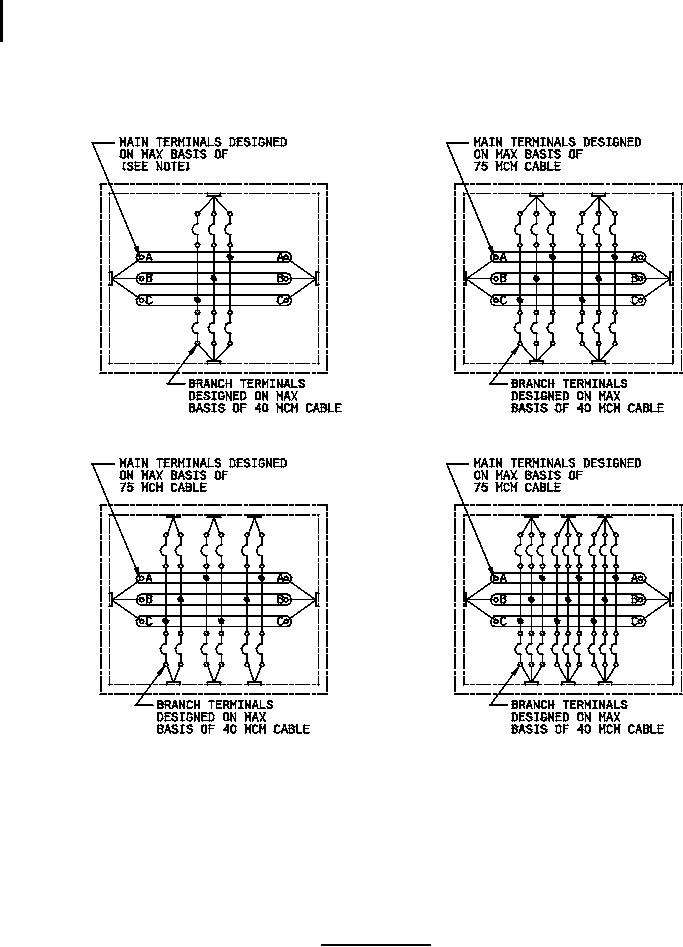

FIGURE 5. Wiring diagrams. 12, 13, 14, 15
