INCH-POUND
MIL-DTL-24646/17B
29 October 2008
SUPERSEDING
MIL-DTL-24646/17A
17 May 2002
DETAIL SPECIFICATION SHEET
FUSE BOXES, FEEDER JUNCTION, SUBMERSIBLE,
(15 FEET), 500 VOLTS, ALTERNATING CURRENT, THREE PHASE BUSES,
0-30 AMPERE FUSES
SYMBOLS 693.1
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-24646.

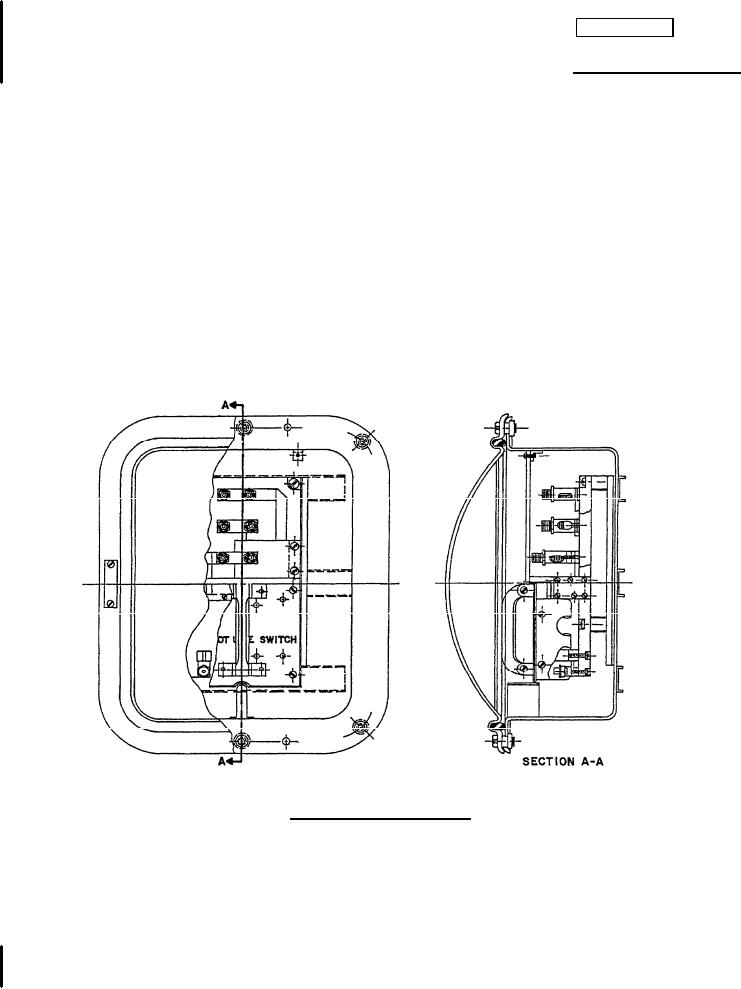

FIGURE 1. Fuse box assembly, typical. Item No. 01
(Symbol 693.1 shown)
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified herein, tolerances shall be as follows:
Two place decimals - plus or minus 0.02.
Three place decimals - plus or minus 0.005.
AMSC N/A
FSC 5920
