INCH-POUND
MIL-DTL-24646/4C
23 January 2014
SUPERSEDING
MIL-DTL-24646/4B
29 October 2008
DETAIL SPECIFICATION SHEET
FUSE BOXES, FEEDER DISTRIBUTION, TOTALLY ENCLOSED,
450 VOLTS, ALTERNATING CURRENT, THREE PHASE BUSES,
SINGLE AND THREE PHASE BRANCHES, 0-30 AND 31-60 AMPERE FUSES,
SYMBOLS 543, 544, 545, 546 AND 547
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-24646.

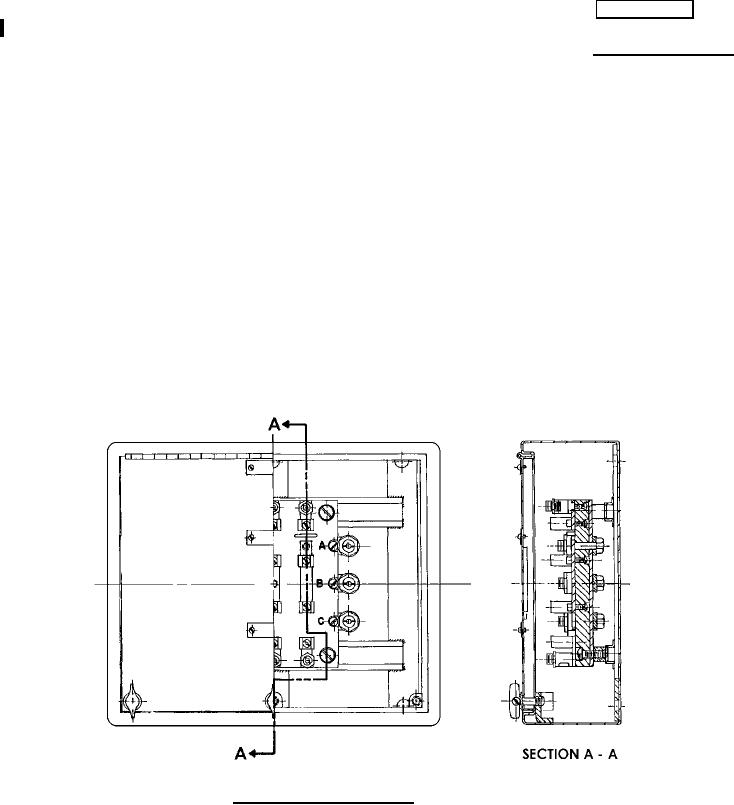

FIGURE 1. Fuse box assembly, typical. Item No. 01, 02, 03, 04, 05
(Symbol 543 shown)
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified herein, tolerances shall be as follows:
Two place decimals - plus or minus 0.02.
Three place decimals - plus or minus 0.005.
