MIL-DTL-24646-4 Fuse Boxes, Feeder Distribution, Totally Enclosed, 450 Volts, Alternating Current, Three Phase Buses, Single And Three Phase Branches, 0-30 And 31-60 Ampere Fuses, Symbols 543, 544, 545, 546 And 547

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9


MIL-DTL-24646/4C
SYMBOL
DIMENSIONS (MAX)
NO
A
B
C
543
7.87
7.12
2.80
544
11.87
7.12
2.80
545
16.37
7.12
2.70
546
8.87
8.38
2.80
547
14.37
8.38
2.80

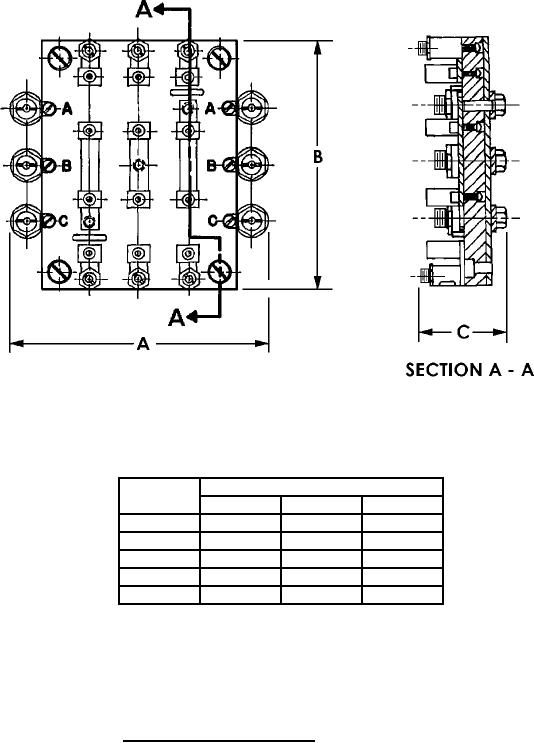

FIGURE 4. Fuse block assembly, typical. Item No. 11, 12, 13, 14, 15
(Symbols 543, 544, 545, 546 and 547)
4
