INCH-POUND
MIL-DTL-24646/6C
14 August 2014
SUPERSEDING
MIL-DTL-24646/6B
29 October 2008
DETAIL SPECIFICATION SHEET
FUSE BOXES, FEEDER DISTRIBUTION, WITH SWITCHES, TOTALLY ENCLOSED,
125 VOLTS, ALTERNATING CURRENT, SINGLE AND THREE PHASE BUSES,
SINGLE AND DOUBLE FEEDER, SINGLE PHASE BRANCHES,
0-30 AMPERE MIDGET FUSES AND SNAP SWITCHES,
SYMBOLS 602, 603, 604, 605, 606, 615, 616, 617, 618
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-24646.

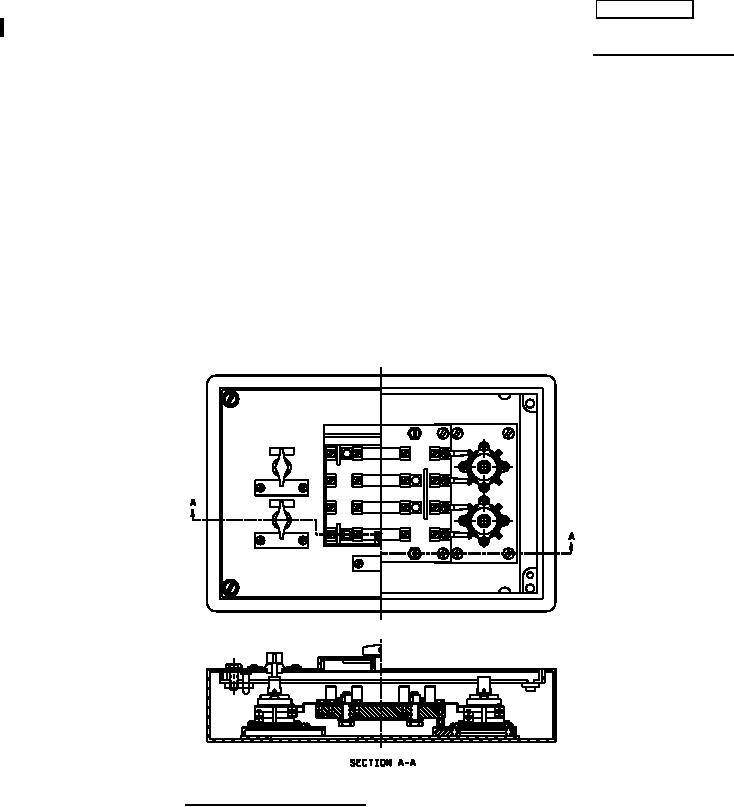

FIGURE 1. Fuse box assembly, typical. Item No. 01, 02, 03, 04, 05, 06, 07, 08, 09
(Symbol 602 shown)
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified herein, tolerances shall be as follows:
Two place decimals - plus or minus 0.02.
Three place decimals - plus or minus 0.005.
AMSC N/A
FSC 5920
