MIL-DTL-24646-6 Fuse Boxes, Feeder Distribution, With Switches, Totally Enclosed, 125 Volts, Alternating Current, Single And Three Phase Buses, Single And Double Feeder, Single Phase Branches, 0-30 Ampere Midget Fuses And Snap Switches, Symbols 602, 603, 604, 605, 606, 615, 616, 617, 618

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10


MIL-DTL-24646/6C
SYMBOL
DIMENSIONS
NO
B
602
6.00
603
10.88
604
6.00
605
10.88
606
15.19
615
6.00
616
10.88
617
15.19
618
15.19

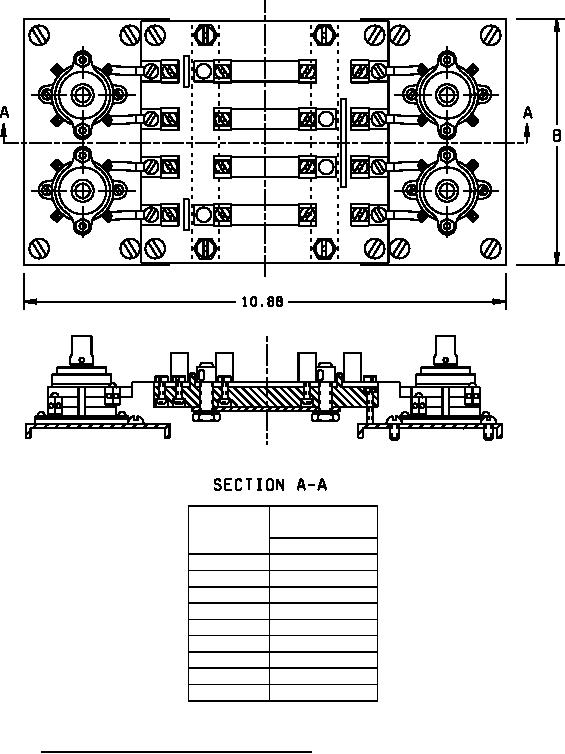

FIGURE 5. Fuse block, and switch assembly, typical. Item No. 13, 14, 15, 16, 17, 18, 19, 20, 21
(Symbols 602, 603, 604, 605, 606, 615, 616, 617 and 618)
