MIL-DTL-24646-7 Fuse Boxes, Feeder Distribution, Submersible \(15 Feet\), 125 Volts, Alternating Current, Single Phase Buses, 0-30 Ampere Midget Fuses, Symbols 635.1, 653.1 And 654.1

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8


MIL-DTL-24646/7B
SYMBOL
DIMENSIONS (MAX)
NO
A
B
C
635.1
7.50
5.00
2.30
654.1
12.63
5.00
2.30
653.1
20.25
6.38
2.30

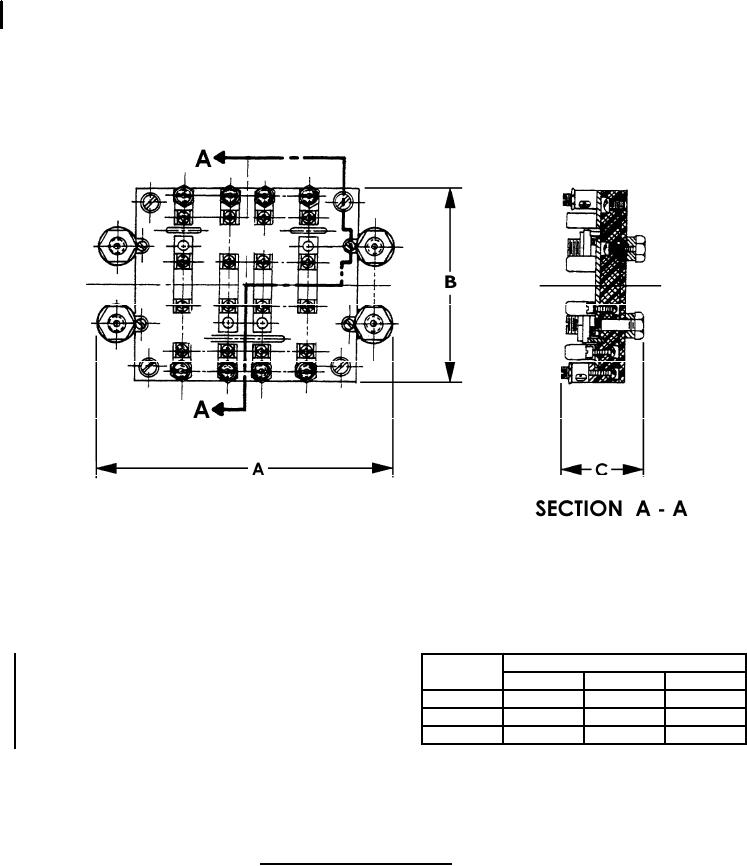

FIGURE 4. Fuse block assembly, typical. Item No. 07, 08, 09
(Symbols 635.1, 654.1, and 653.1)
4
