MIL-DTL-24646-7 Fuse Boxes, Feeder Distribution, Submersible \(15 Feet\), 125 Volts, Alternating Current, Single Phase Buses, 0-30 Ampere Midget Fuses, Symbols 635.1, 653.1 And 654.1

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8


MIL-DTL-24646/7B
A. Four single-phase branches
B. Eight single-phase branches
(Symbol 635.1)
(Symbol 654.1)
C. Twelve single-phase branches
(Symbol 653.1)

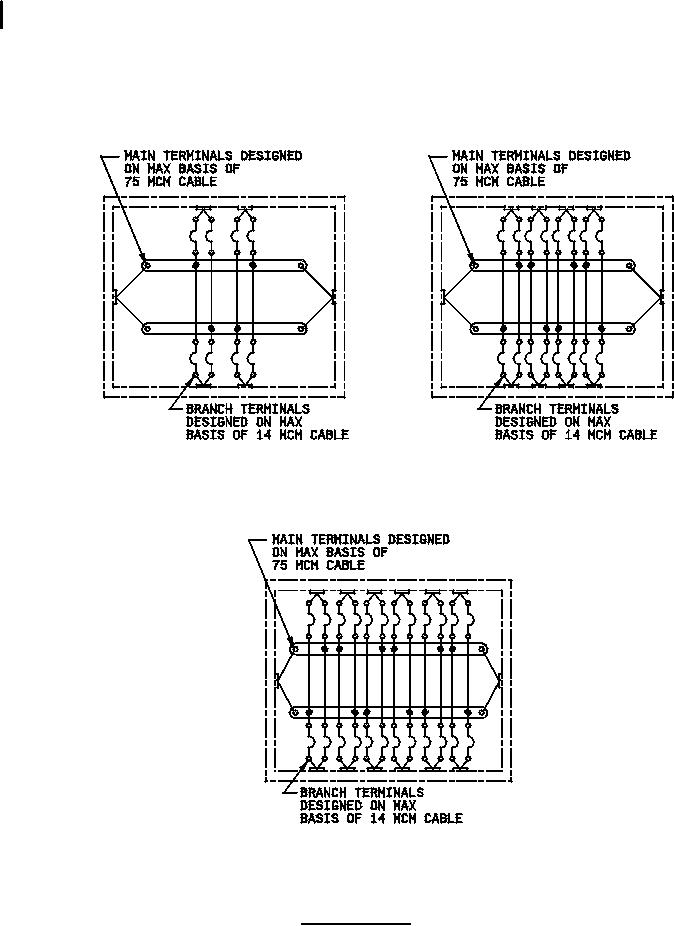

FIGURE 5. Wiring diagrams. Item No. 10, 11, 12
5
