MIL-DTL-24646-9 Fuse Boxes, Feeder Distribution, Submersible, \(15 Feet\), 250 Volts, Alternating Current, Single Phase Buses, 0-30 Ampere Fuses, Symbols 555.1, 556.1, 557.1, 558.1, And 559.1

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8


MIL-DTL-24646/9B
Dimensions
Symbol
no.
A
B
555.1
5.75
2.88
556.1
9.25
4.63
557.1
11.75
5.88
558.1
14.25
7.12
A. Symbols 555.1, 556.1, 557.1, and 558.1
B. Symbol 559.1

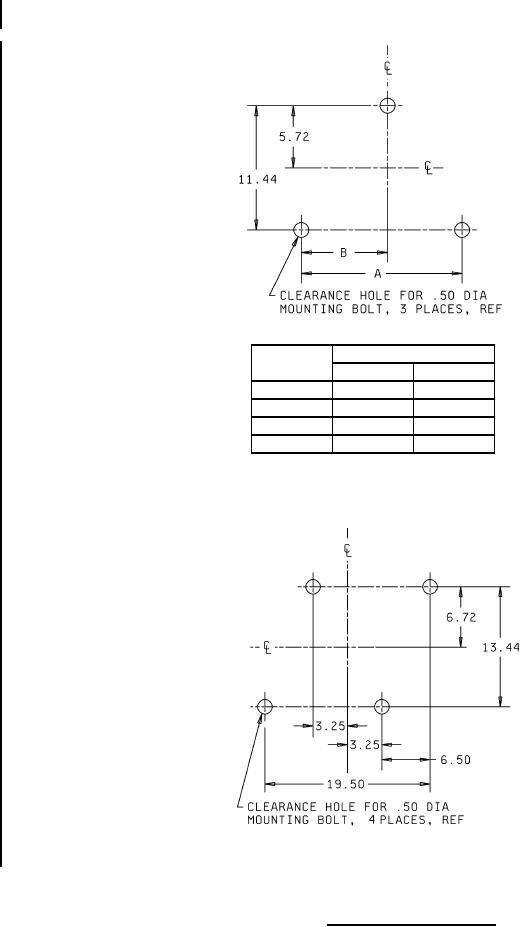

FIGURE 3. Mounting dimensions, ref.
(Symbols 555.1, 556.1, 557.1, 558.1 and 559.1)
3
