MIL-DTL-24646/9B
Dimensions (max)
Symbol
no.
A
B
C
555.1
6.50
6.38
2.80
556.1
9.00
6.38
2.80
557.1
11.87
6.38
2.80
558.1
14.63
6.38
2.80
559.1
20.25
6.38
2.80

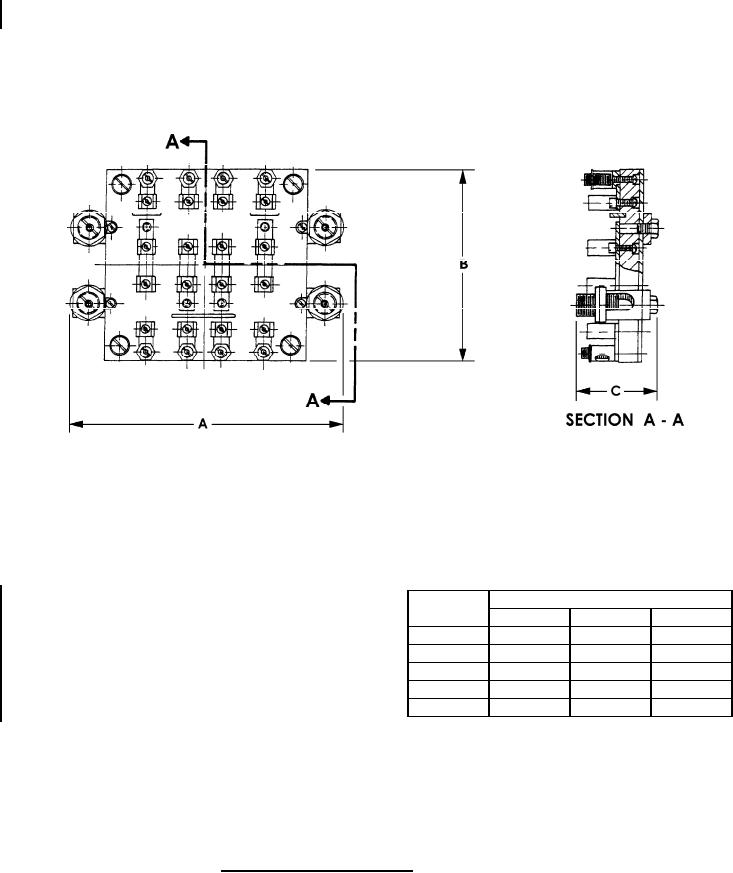

FIGURE 4. Fuse block assembly, typical. Item No. 11, 12, 13, 14, 15
(Symbols 555.1, 556.1, 557.1, 558.1 and 559.1)
