MIL-PRF-19207/21M
Ltr
Inches
mm
Ltr
Inches
mm
Min
Max
Min
Max
Min
Max
Min
Max
A
1.230
1.270
31.24
32.26
G
---
.440
---
11.18
B
1.120
1.160
28.45
29.46
H
2.780 (REF)
70.61 (REF)
C
1.080 (REF)
27.43 (REF)
J
.882
.887
22.40
22.53
D
1.320 (REF)
33.53 (REF)
K
.882
.887
22.40
22.53
E
.540
.580
13.72
14.73
L
.820
.825
20.83
20.96
F
---
.730
---
18.54
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±0.02 (0.51 mm) for two-place decimals and ±0.005
(0.13 mm) for three-place decimals.
4. The location (on the fuseholder body) of the manufacturer's identification and electrical rating is
optional.

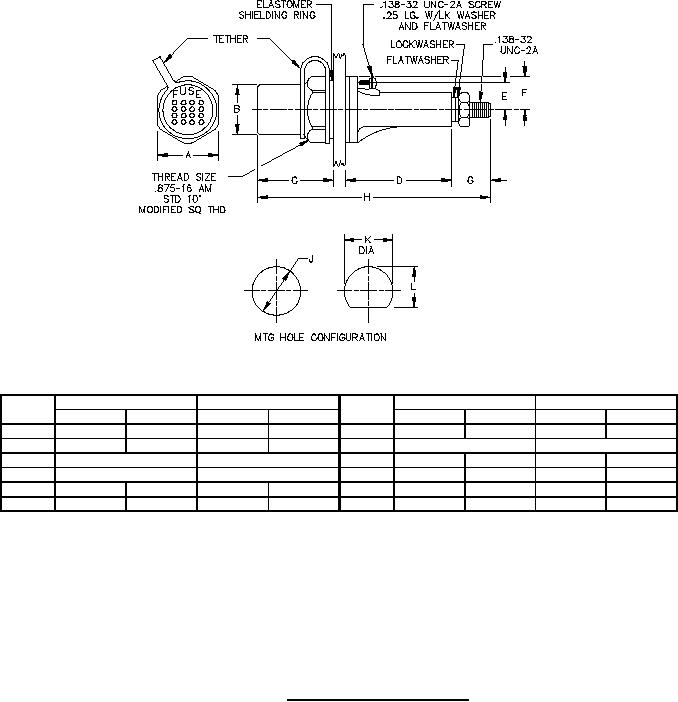

FIGURE 2. Type FHL32WS fuseholder.
