INCH-POUND
MIL-PRF-19207/24M
9 January 2014
SUPERSEDING
MIL-PRF-19207/24L
17 July 2007
PERFORMANCE SPECIFICATION SHEET
FUSEHOLDERS, EXTRACTOR POST TYPE, BLOWN FUSE INDICATING,
NON-EMI/RFI SHIELDED AND EMI/RFI SHIELDED,
TYPE FHL35W AND TYPE FHL35WS
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-19207.
Inches
mm
Ltr
Inches
mm
Min
Max
Min
Max
Min
Max
Min
Max
Ltr
A
1.360
1.400
34.54
35.56
F
1.120 (REF)
28.45 (REF)
B
1.230
1.270
31.24
32.26
G
1.760
1.800
44.70
45.72
C
.670
.710
17.02
18.03
H
1.067
1.072
27.10
27.23
D
.690 (REF)
17.53 (REF)
J
1.126
1.136
28.60
28.85
E
.830 (REF)
21.08 (REF)
K
.055
.065
1.40
1.65
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±0.02 (0.51 mm) for two-place decimals and ±0.005
(0.13 mm) for three-place decimals.
4. The location (on the fuseholder body) of the manufacturer's identification and electrical rating is
optional.

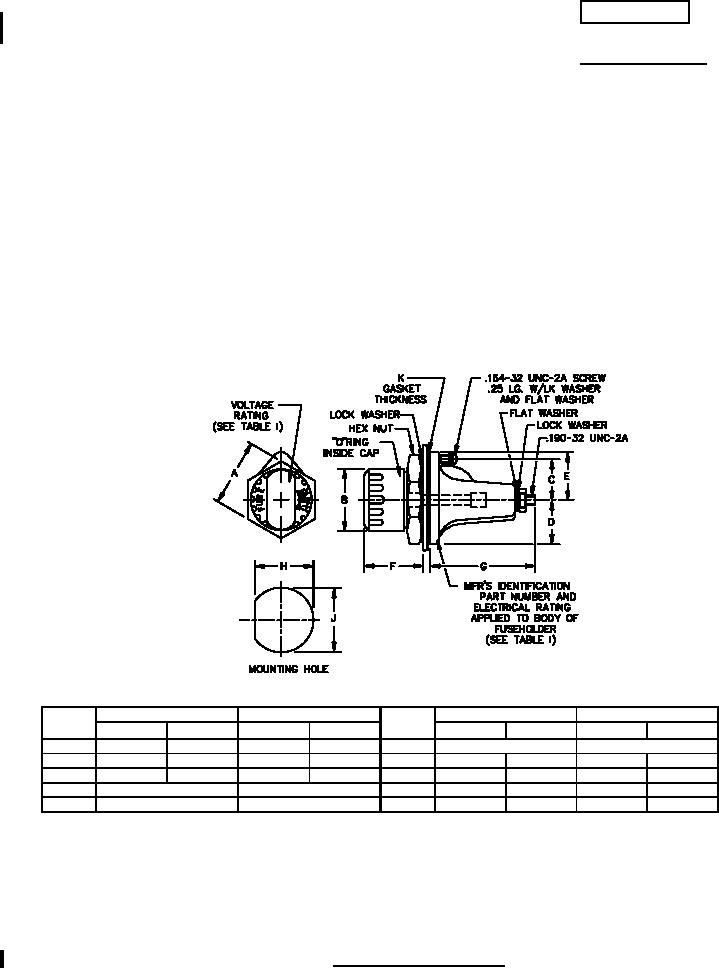

FIGURE 1. Type FHL35W fuseholder.
