MIL-PRF-19207/24M
Ltr
Inches
mm
Ltr
Inches
mm
Min
Max
Min
Max
Min
Max
Min
Max
A
1.610
1.650
40.89
41.91
G
1.400 (REF)
35.56 (REF)
B
1.370
1.410
34.80
35.81
H
.440 (REF)
11.18 (REF)
C
.630
.670
16.00
17.02
J
3.100 (REF)
78.74 (REF)
D
---
.840
---
21.34
K
1.126
1.136
28.60
28.85
E
.670
.710
17.02
18.03
L
1.126
1.136
28.60
28.85
F
1.220 (REF)
30.99 (REF)
M
1.067
1.072
27.10
27.23
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±0.02 (0.51 mm) for two-place decimals and ±0.005
(0.13 mm) for three-place decimals.
4. The location (on the fuseholder body) of the manufacturer's identification and electrical rating is
optional.

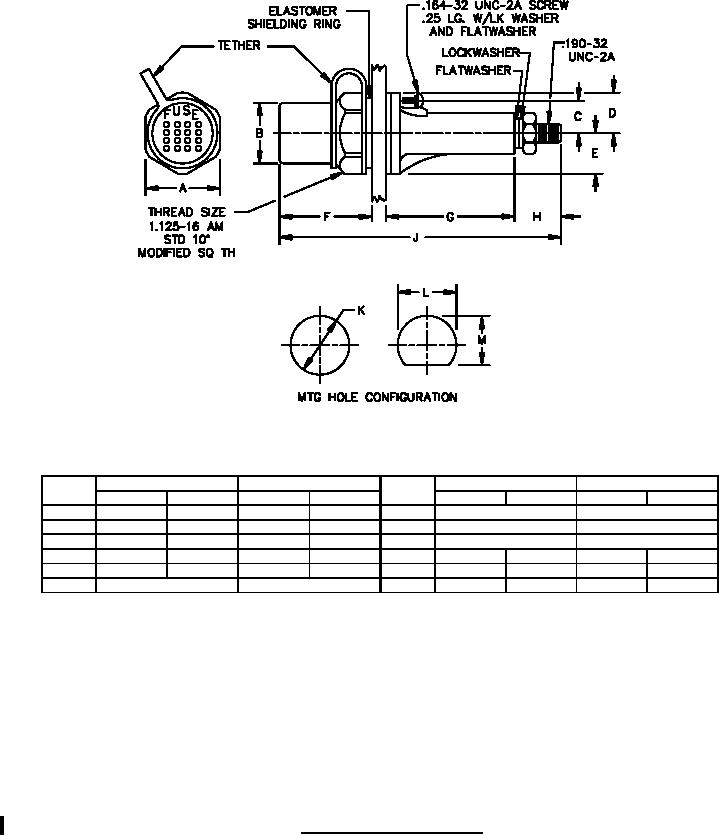

FIGURE 2. Type FHL35WS fuseholder.
