INCH-POUND
MIL-PRF-19207/29H
6 March 2014
SUPERSEDING
MIL-PRF-19207/29G
17 July 2007
PERFORMANCE SPECIFICATION SHEET
FUSEHOLDERS, EXTRACTOR POST TYPE, BLOWN FUSE INDICATING,
TYPE FHL45G
This specification is approved for use by all Departments
and Agencies of the Department of Defense
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-19207.
Ltr
Inches
mm
Ltr
Inches
mm
Min
Max
Min
Max
Min
Max
Min
Max
A
.597
.797
15.16
20.24
F
.760
.800
19.30
20.32
B
---
.187
---
4.75
G
.035
.045
.89
1.14
C
.550 (REF)
13.97 (REF)
H
.570
.575
14.48
14.61
D
---
.609
---
15.47
J
.500
.510
12.70
12.95
E
.492
.498
12.50
12.65
K
.635
.640
16.13
16.26
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerances are ±.02 (0.51 mm) for two-place decimals and ±.005 (0.13 mm) for
three-place decimals.
3. Metric equivalents (to the nearest .01 mm) are given for general information only.

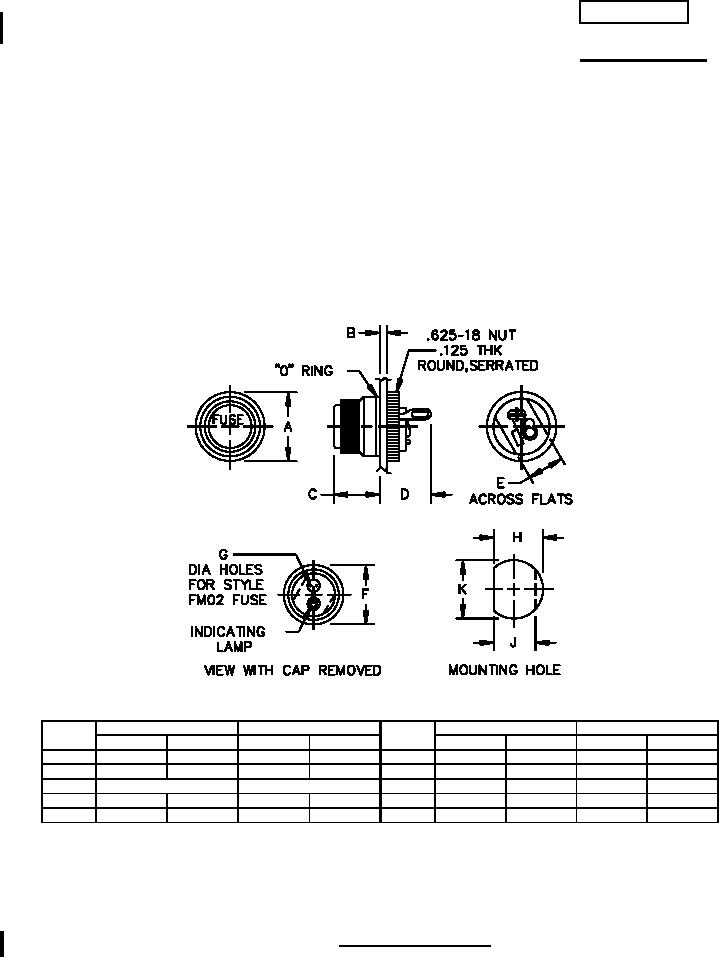

FIGURE 1. Type FHL45G fuseholder.
