INCH-POUND
MIL-PRF-23419/7J
28 March 2012
SUPERSEDING
MIL-PRF-23419/7H
21 June 2005
PERFORMANCE SPECIFICATION SHEET
FUSES, CARTRIDGE, INSTRUMENT TYPE, STYLE FM07,
(SUBMINIATURE - HIGH PERFORMANCE)
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-23419.
Inches
mm
.001
0.03
.025
0.64
.100
2.54
.108
2.74
.170
4.32
.198
5.03
.240
6.10
.290
7.37
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ±.010 (0.25 mm).

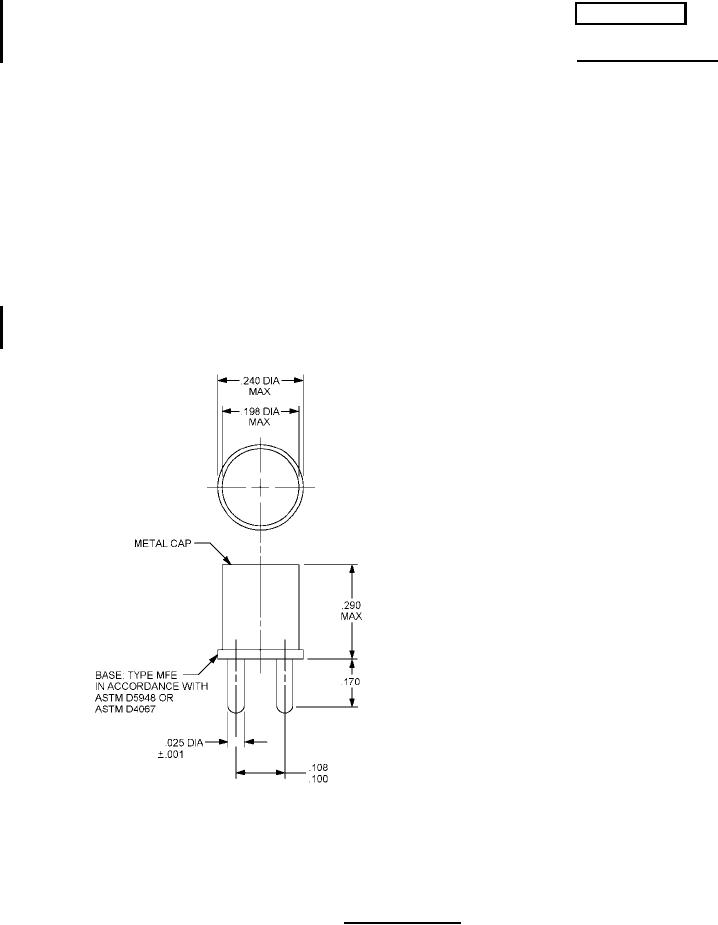

FIGURE 1. Style FM07 fuses.
AMSC N/A
FSC 5920
