INCH-POUND
MIL-PRF-15160/9G
15 November 2011
SUPERSEDING
MIL-PRF-15160/9F
7 July 2006
PERFORMANCE SPECIFICATION SHEET
FUSES, INSTRUMENT, POWER, AND TELEPHONE
(NONINDICATING), STYLE F09
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-15160.
Inches
mm
Ltr
Min
Max
Min
Max
A
1.469
1.531
37.31
38.89
B
.402
.415
10.21
10.54
C
---
.406
---
10.31
D
---
.400
---
10.16
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.

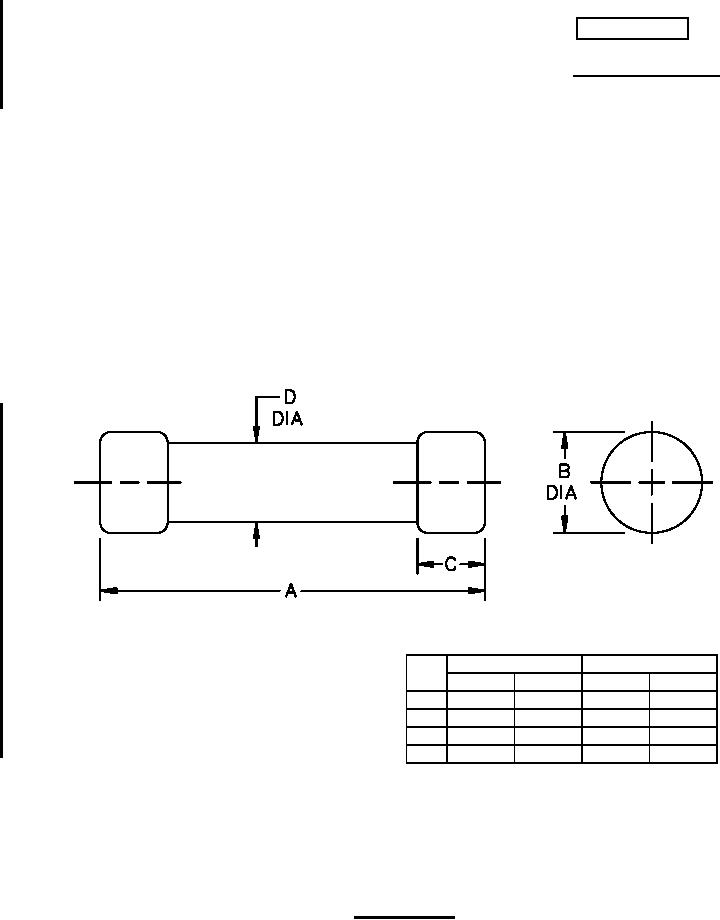

FIGURE 1. Style F09, fuse.
