INCH-POUND
MIL-PRF-19207/16J
12 December 2013
SUPERSEDING
MIL-F-19207/16H
24 April 2007
PERFORMANCE SPECIFICATION SHEET
FUSEHOLDERS, EXTRACTOR POST TYPE,
NONINDICATING, TYPES FHN26G1, FHN26G2, AND FHN26W
This specification is approved for use by all departments
and agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-PRF-19207.
Ltr
Inches
mm
Ltr
Inches
mm
Min
Max
Min
Max
Min
Max
Min
Max
A
.670
.710
17.02
18.03
F
---
2.340
---
59.44
B
.650 (REF)
16.51 (REF)
G
---
.600
---
15.24
C
.680
.690
17.27
17.53
H
.455
.465
11.56
11.81
D
.480
.520
12.70
13.21
J
.475
.480
12.07
12.19
E
.112
.118
2.81
3.00
K
.500
.510
12.70
12.95
NOTES:
1. Dimensions are in inches.
2. Metric equivalents (to the nearest 0.01 mm) are given for general.
3. Unless otherwise specified, tolerances are ±0.02 (0.51 mm) for two-place decimals and ±0.005 (0.13 mm)
for three-place decimals.
4.
The location (on the fuseholder body) of the manufacturer's identification and type designation is optional.
5.
The shape of the above fuseholder and knob marking are shown for information only. Slight deviations from
this outline drawing and/or the knob marking, which do not alter the functional aspect of the device, are
acceptable.

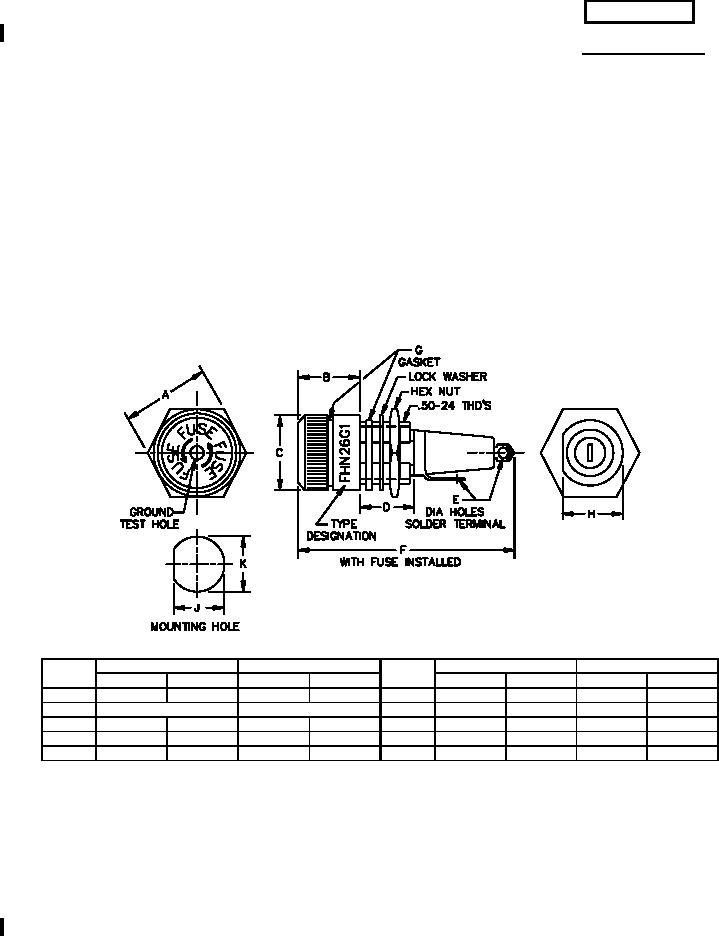

FIGURE 1. Type FHN26G1.
AMSC N/A
FSC 5920
