MIL-PRF-19207/16J
Ltr
Inches
mm
Ltr
Inches
mm
Min
Max
Min
Max
Min
Max
Min
Max
A
.440
.452
11.18
11.48
F
.780 (REF)
19.50 (REF)
B
.670
.710
17.02
18.03
G
---
2.090
---
53.09
C
.090
.130
2.29
3.30
H
.685
.695
17.40
17.53
D
.410
.450
10.41
11.43
J
.475
.480
12.07
12.19
E
---
.060
---
1.52
K
.500
.510
12.70
12.95
NOTES:
1. Dimensions are in inches.
2. Metric equivalents (to the nearest 0.01 mm) are given for general.
3. Unless otherwise specified, tolerances are ±0.02 (0.51 mm) for two-place decimals and ±0.005 (0.13 mm) for
three-place decimals.
4. The location (on the fuseholder body) of the manufacturer's identification and type designation is optional.
5. The shape of the above fuseholder and knob marking are shown for information only. Slight deviations from
this outline drawing and/or the knob marking, which do not alter the functional aspect of the device, are
acceptable.

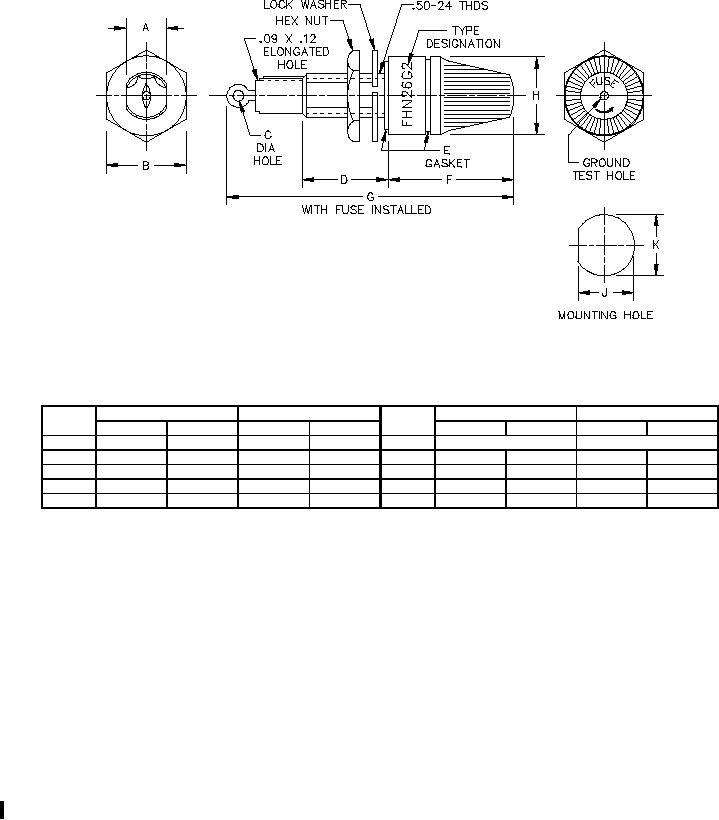

FIGURE 2. Type FHN26G2
