INCH-POUND
MIL-PRF-19207/20F
9 January 2014
SUPERSEDING
MIL-PRF-19207/20E
24 April 2007
PERFORMANCE SPECIFICATION SHEET
FUSEHOLDERS, EXTRACTOR POST TYPE, NONINDICATING,
TYPES FHN31G1 AND FHN31G2
This specification is approved for use by all Departments
and Agencies of the Department of Defense
The requirements for acquiring the product described herein
shall consist of this specification and MIL-PRF-19207.
Ltr
Inches
mm
Ltr
Inches
mm
Min
Max
Min
Max
Min
Max
Min
Max
A
.670
.710
17.02
18.03
F
---
2.340
---
59.44
B
.650 (REF)
16.51 (REF)
G
.455
.465
11.56
11.81
C
.680
.690
17.27
17.53
H
.500
.510
D
.450
.490
11.43
12.47
J
.468
.478
E
.112
.118
2.84
3.00
NOTES:
1. Dimensions are in inches.
2. Metric equivalents (to the nearest .01 mm) are given for general information only and are based
upon 1 inch = 25.4 mm.
3. Unless otherwise specified, tolerances are ±.02 (0.51 mm) for two-place decimals and ±.005 (0.13 mm)
for three-place decimals.
4. Formerly type FHN31G.

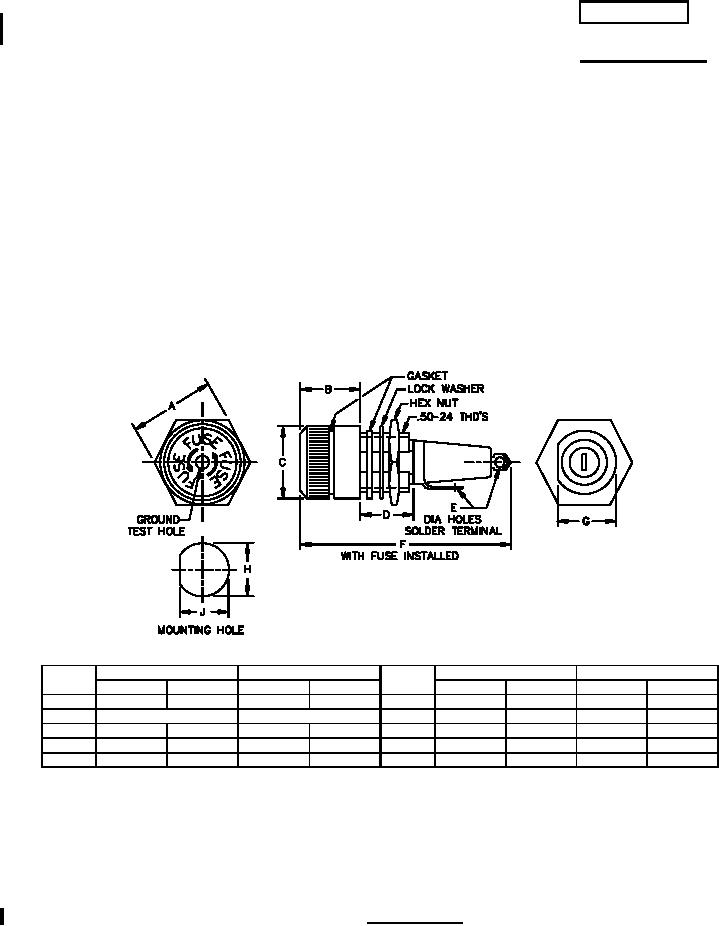

FIGURE 1. Type FHN31G1.
