INCH-POUND
MIL-PRF-19207/9L
12 December 2013
SUPERSEDING
MIL-PRF-19207/9K
22 January 2007
PERFORMANCE SPECIFICATION SHEET
FUSESHOLDERS, EXTRACTOR POST TYPE,
BLOWN FUSE INDICATING, TYPES FHL18G1 AND FHL18G2
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification and MIL-PRF-19207.
Ltr
Inches
mm
Ltr
Inches
mm
Min
Max
Min
Max
Min
Max
Min
Max
A
.790
.830
20.07
21.08
G
1.17
1.21
29.72
30.73
B
.320
.360
8.13
9.14
H
.420
.440
10.67
11.18
C
.780
.820
19.81
20.83
J
---
3.31
---
84.07
D
.055
.065
1.40
1.65
K
.100
---
2.54
---
E
.800
.840
20.32
21.34
L
.560
.569
14.22
14.45
F
.510
.550
12.95
13.97
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm) for three place decimals and ±.02
(0.5 mm) for two place decimals.

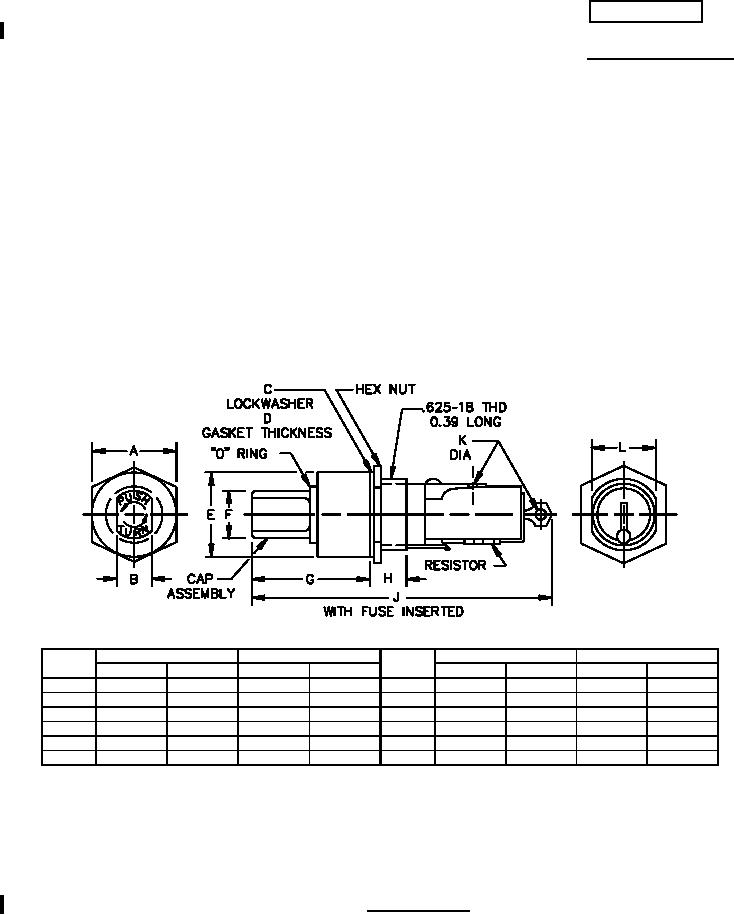

FIGURE 1. Type FHL18G1.
AMSC N/A
FSC 5920
