MIL-DTL-24646-15 Fuse Boxes, Feeder Junction, Submersible, \(15 Feet\), 250 Volts, Alternating Current, Feed Through Twin Conductors, Single And Three Phase Buses, Single And Three Phase Branches, 0-30 And 31-60 Ampere Fuses, Symbols 685.1, 686.1, 691.1, And 692.1

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8


MIL-DTL-24646/15B
(Symbols 691.1, 692.1)
(Symbols 685.1, 686.1)
DIMENSIONS (REF)
SYMBOL
NO
A
B
C
D
685.1
10.94
7.94
5.12
4.50
686.1
10.94
7.94
5.12
4.50
691.1
13.38
13.38
5.62
3.00
692.1
15.38
16.38
7.62
5.00

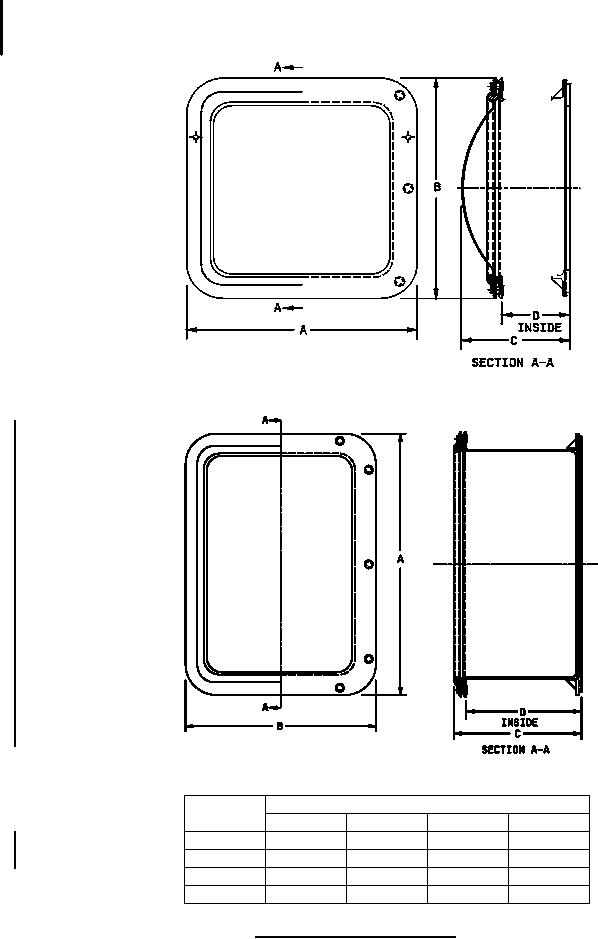

FIGURE 2. Enclosure, overall dimensions. Item No. 05, 06, 07
(Symbols 685.1, 686.1, 691.1, and 692.1)
2
