MIL-DTL-24646-15 Fuse Boxes, Feeder Junction, Submersible, \(15 Feet\), 250 Volts, Alternating Current, Feed Through Twin Conductors, Single And Three Phase Buses, Single And Three Phase Branches, 0-30 And 31-60 Ampere Fuses, Symbols 685.1, 686.1, 691.1, And 692.1

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8


MIL-DTL-24646/15B
DIMENSIONS (MAX)
SYMBOL
NO
A
B
C
685.1
6.25
4.63
2.06
686.1
6.25
4.63
2.06
691.1
5.50
5.63
2.50
692.1
8.38
6.88
2.50

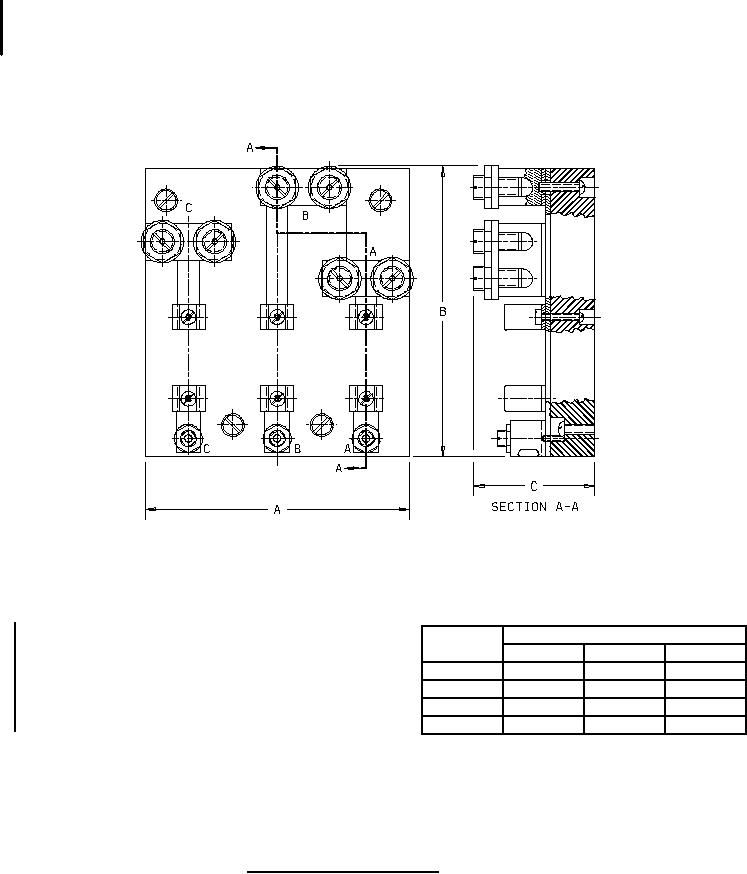

FIGURE 4. Fuse block assembly, typical. Item No. 08, 09, 10, 11
(Symbol 691.1 shown)
4
