MIL-DTL-24646-15 Fuse Boxes, Feeder Junction, Submersible, \(15 Feet\), 250 Volts, Alternating Current, Feed Through Twin Conductors, Single And Three Phase Buses, Single And Three Phase Branches, 0-30 And 31-60 Ampere Fuses, Symbols 685.1, 686.1, 691.1, And 692.1

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8


MIL-DTL-24646/15B
For symbols 691.1 and 692.1. For symbols 685.1 and 686.1
a clearance hole for .375 dia mounting bolt is needed.
DIMENSIONS
SYMBOL
NO
A
B
C
D
685.1
7.25
3.62
7.88
2.75
686.1
7.25
3.62
7.88
2.75
691.1
5.75
2.88
11.44
5.72
692.1
9.25
4.62
13.44
6.72

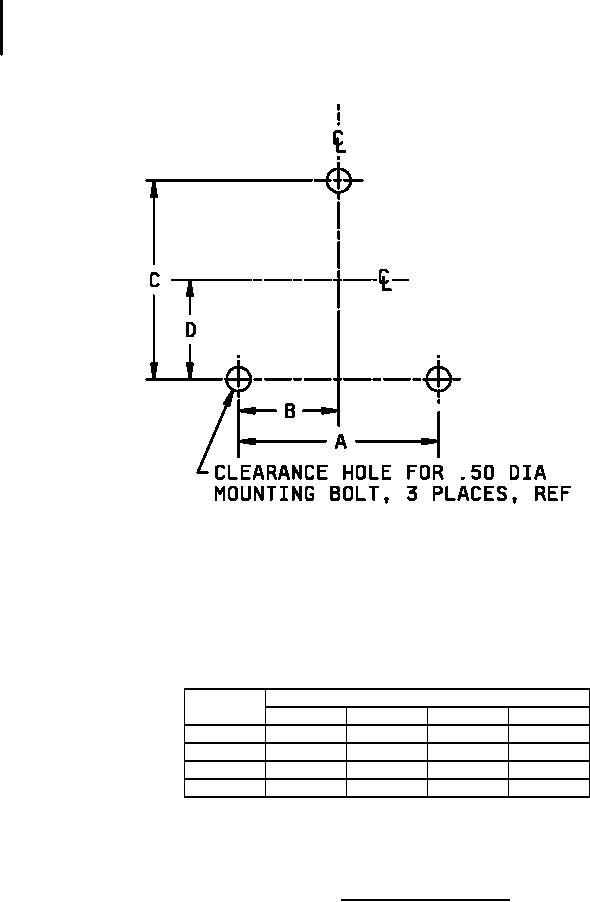

FIGURE 3. Mounting dimensions, ref.
(Symbols 685.1, 686.1, 691.1 and 692.1)
