MIL-DTL-24646-15 Fuse Boxes, Feeder Junction, Submersible, \(15 Feet\), 250 Volts, Alternating Current, Feed Through Twin Conductors, Single And Three Phase Buses, Single And Three Phase Branches, 0-30 And 31-60 Ampere Fuses, Symbols 685.1, 686.1, 691.1, And 692.1

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8


MIL-DTL-24646/15B
A. One single-phase branch
B. One single-phase branch
(Symbol 685.1)
(Symbol 686.1)
C. One 3-phase branch
D. One 3-phase branch
(Symbol 691.1)
(Symbol 692.1)

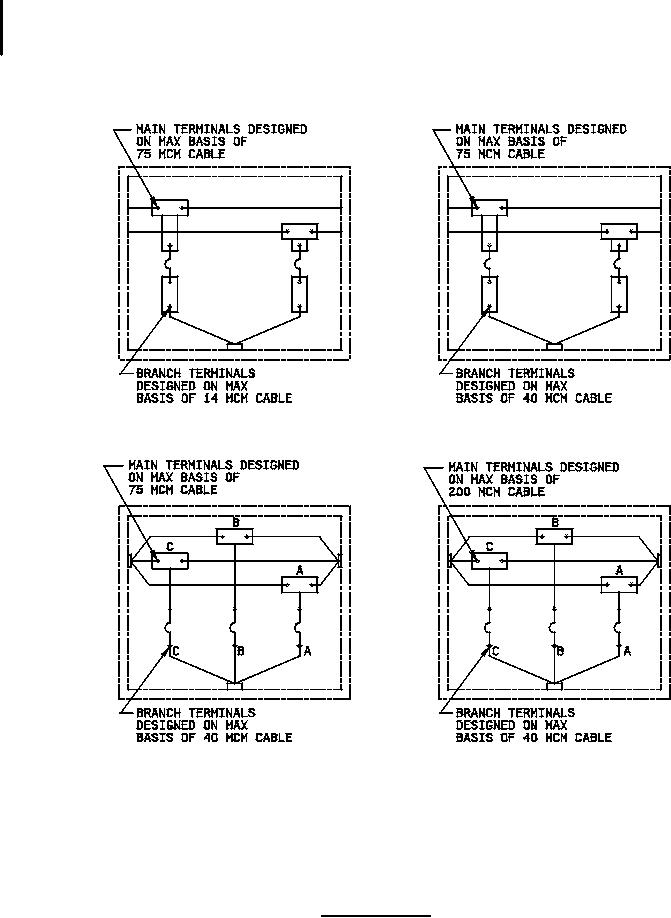

FIGURE 5. Wiring diagrams. 12, 13, 14, 15
5
