MIL-DTL-24646-2 Fuse Boxes, Feeder Distribution, Totally Enclosed, 125/250 Volts, Direct Current, Three Wire Buses, Two Wire Branches, 0-30 Ampere Midget Fuses, Symbols 609,610 And 611

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8


MIL-DTL-24646/2B
SYMBOL
DIMENSIONS (MAX)
NO
A
B
C
609
7.50
5.75
2.20
610
12.37
5.75
2.20
611
17.25
5.75
2.20

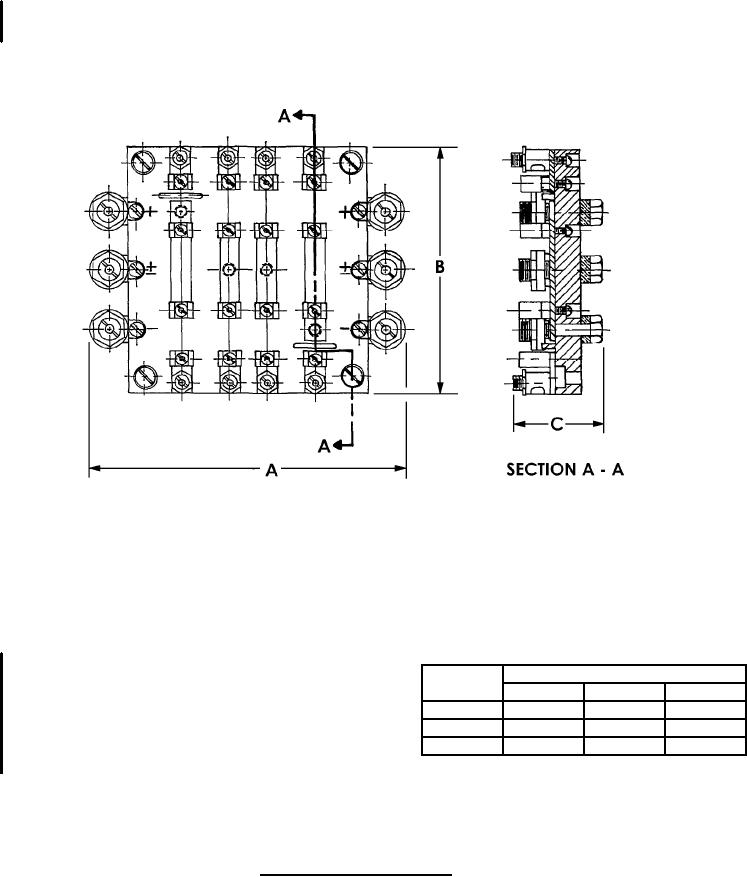

FIGURE 4. Fuse block assembly, typical. Item No. 07, 08, 09
(Symbols 609, 610 and 611)
