MIL-DTL-24646-2 Fuse Boxes, Feeder Distribution, Totally Enclosed, 125/250 Volts, Direct Current, Three Wire Buses, Two Wire Branches, 0-30 Ampere Midget Fuses, Symbols 609,610 And 611

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8


MIL-DTL-24646/2B

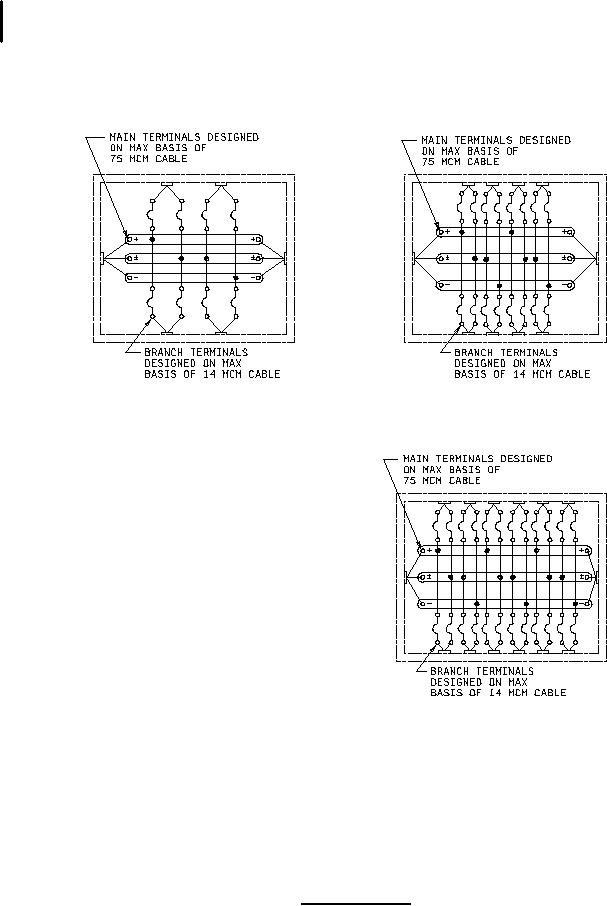

A. Four 2-wire branches (Symbol 609).
B. Eight 2-wire branches (Symbol 610).
C. Twelve 2-wire branches (Symbol 611).
FIGURE 5. Wiring diagrams. Item No. 10, 11, 12
5
