INCH-POUND
MIL-DTL-24646/3B
29 October 2008
SUPERSEDING
MIL-DTL-24646/3A
17 May 2002
DETAIL SPECIFICATION SHEET
FUSE BOXES, FEEDER DISTRIBUTION, TOTALLY ENCLOSED,
125/250 VOLTS, DIRECT CURRENT, THREE WIRE BUSES,
TWO WIRE BRANCHES, 0-30 AMPERE FUSES,
SYMBOLS 540, 541 AND 542
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-24646.

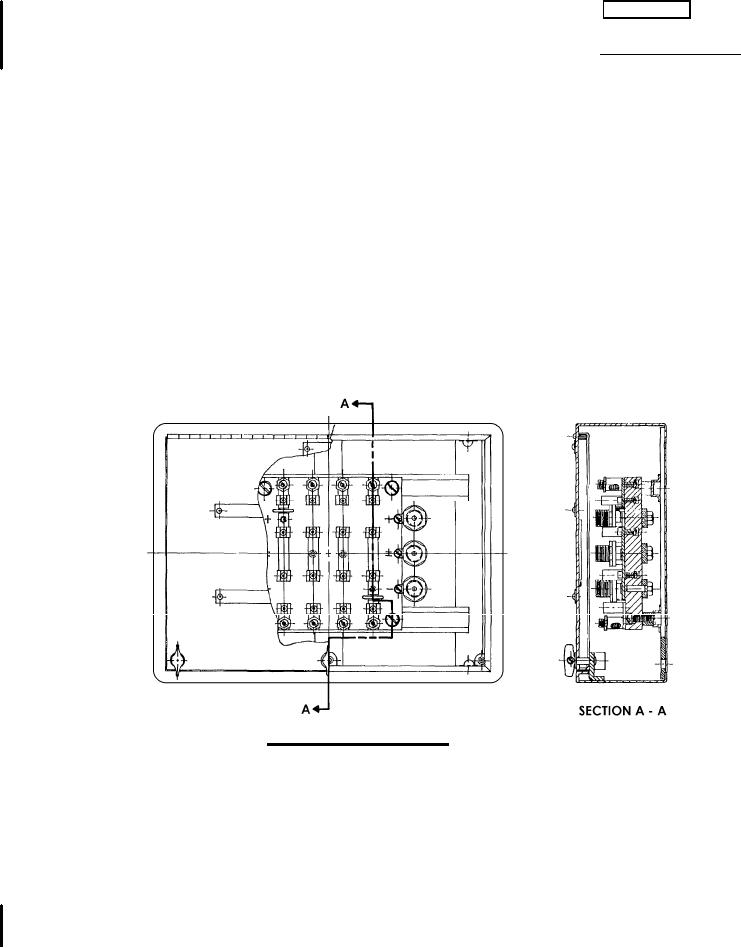

FIGURE 1. Fuse box assembly, typical. Item No. 01, 02, 03
(Symbol 541 shown)
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified herein, tolerances shall be as follows:
Two place decimals - plus or minus 0.02.
Three place decimals - plus or minus 0.005.
AMSC N/A
FSC 5920
