MIL-DTL-24646-3 Fuse Boxes, Feeder Distribution, Totally Enclosed, 125/250 Volts, Direct Current, Three Wire Buses, Two Wire Branches, 0-30 Ampere Fuses, Symbols 540, 541 And 542

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7


MIL-DTL-24646/3B
SYMBOL
DIMENSIONS (REF)
NO
A
B
C
540
14.16
12.16
4.75
541
16.16
12.16
4.75
542
20.16
12.16
4.75

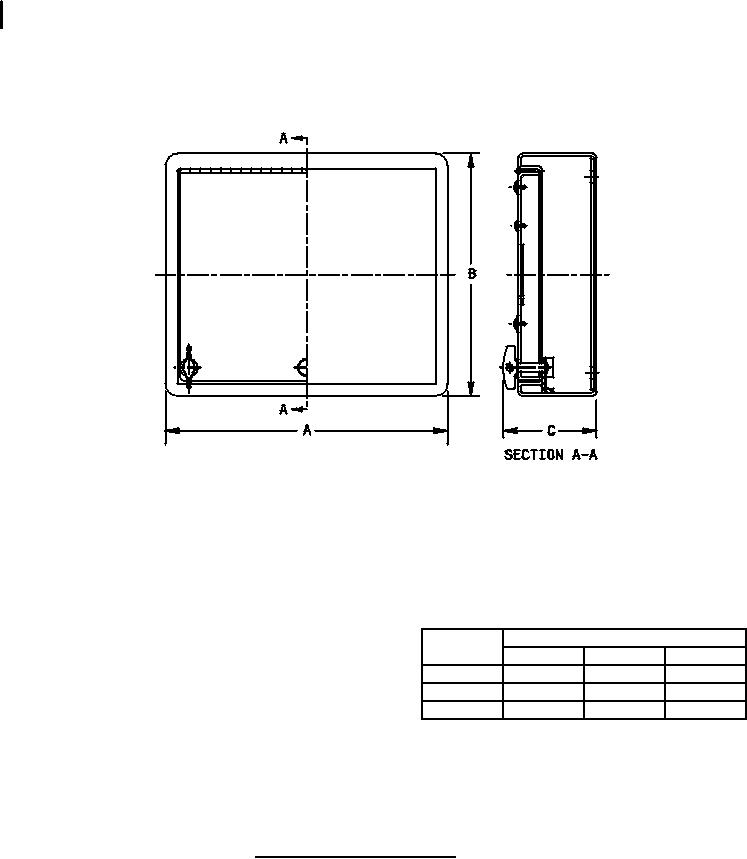

FIGURE 2. Enclosure, overall dimensions. Item No. 04, 05, 06
(Symbols 540, 541, 542)
